    A Rugged, Smart System for Motor-Drive Control

    May 21, 2025
    The ION/CME N-Series Digital Drives developed by Performance Motion Devices handle distributed intelligent motor-drive management.
    Related To:

    Case Study: Autonomous Construction Bots Powered by PMD's Precision Motion

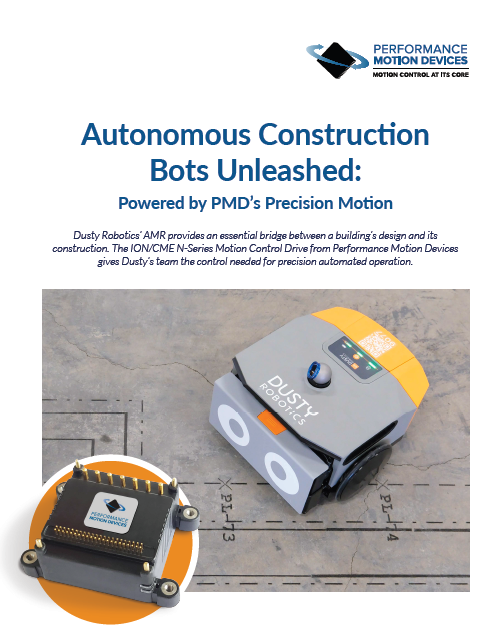

    Download the free Case Study to learn more about how the ION/CME N-Series Motion Control Drive from Performance Motion Devices can help achieve high-performance motion control with position accuracy of 1/16 of an inch.

    PMD Case Study with Dusty Robotics' AMR

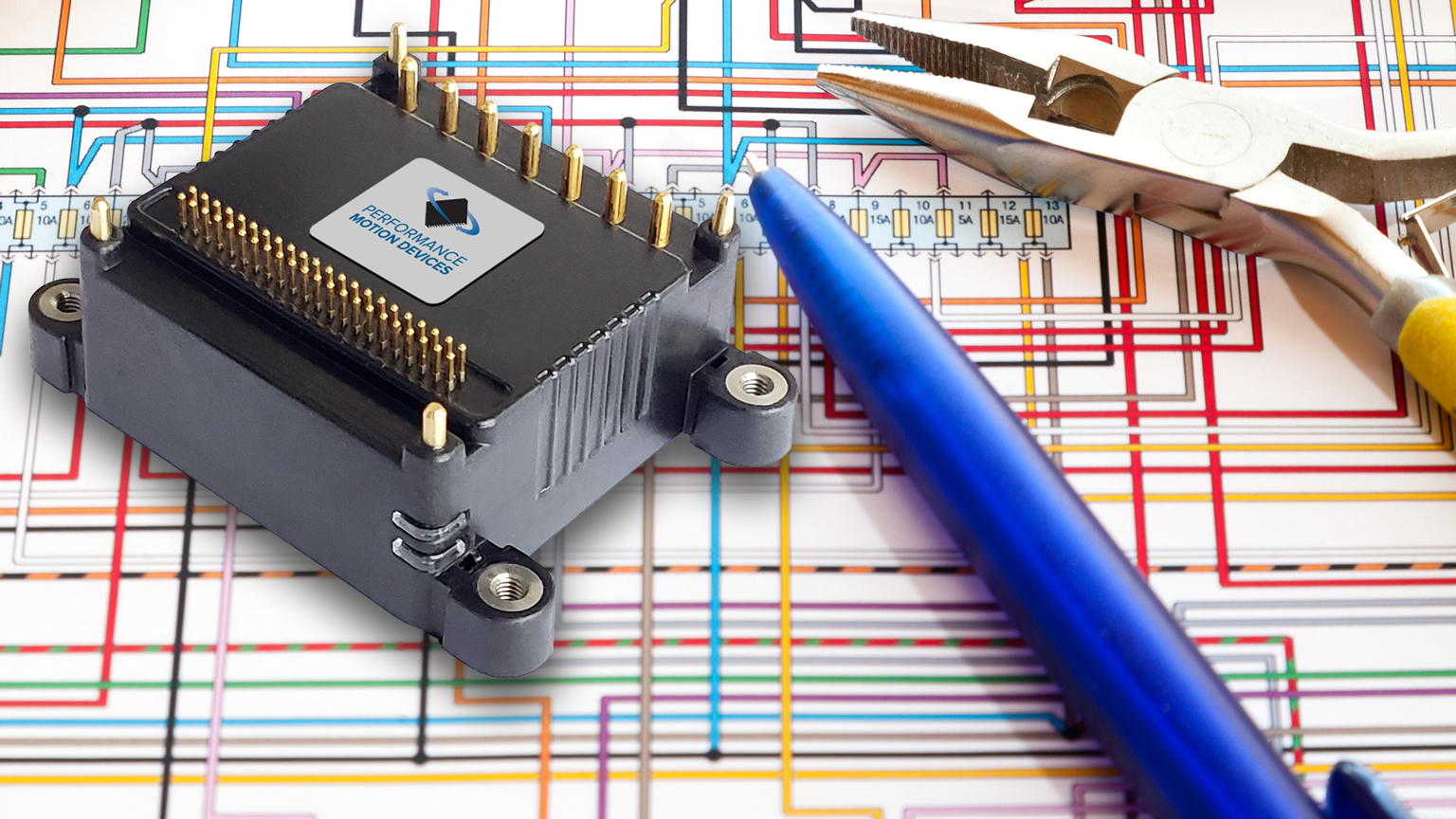

    Performance Motion Devices’ (PMD) ION/CME N-Series Digital Drive family is a rugged, PCB-mountable intelligent motor-drive management system (see figure). The family addresses three power output levels: 75, 350, and 1,000 W. The drives can control brushed DC, brushless DC, and step motors. Quadrature, sin/cos, and BiSS-C encoder formats are all supported.

    Each module is able to handle profile generation, servo compensation, stall detection, field-oriented control, and digital torque control in addition to other motion-control functions. The controllers can be managed via Ethernet, CAN FD, SPI, and serial interfaces, thus simplifying system design and software programming. The module incorporates PMD’s C-Motion Engine that allows users to download a control application.

    The ION/CME N-Series Digital Drives series of PCB-mountable controllers can be linked together in a network controlled by an optional host processor.
    The ION/CME N-Series Digital Drives series of PCB-mountable controllers can be linked together in a network controlled by an optional host processor.

    Furthermore, PMD provides the Pro-Motion Windows-based application. This can be used to control and monitor a system. It also supports the C-Motion programming language. The on-board processor packs 256 kB of user code space and 256 kB of RAM. The system maintains a 20-kHz servo-loop rate and delivers up to 20 A. The controllers come in a small package that measures 37.6 x 37.6 x 16.8 mm and delivers up to 1 kW of power.

    The small package makes the N-Series Digital Drives ideal for embedded control solutions in application spaces such as semiconductor, medical and automation.

    PMD
    Internal block diagram for Performance Motion Devices ION/CME N-Series Digital Drives.
    Internal block diagram for Performance Motion Devices ION/CME N-Series Digital Drives.

    Developer Kit

    A software development kit with C-Motion support is provided. A Developer Kit is available as well, with different versions for each type of host interface.

    Developer Kit includes:

    • ION/CME N-Series integrated hardware and software package
    • Pro-Motion® Software
    • Software Development Kit (SDK) with C-Motion®
    • Complete manual set
    • Complete cable and prototyping connector set
