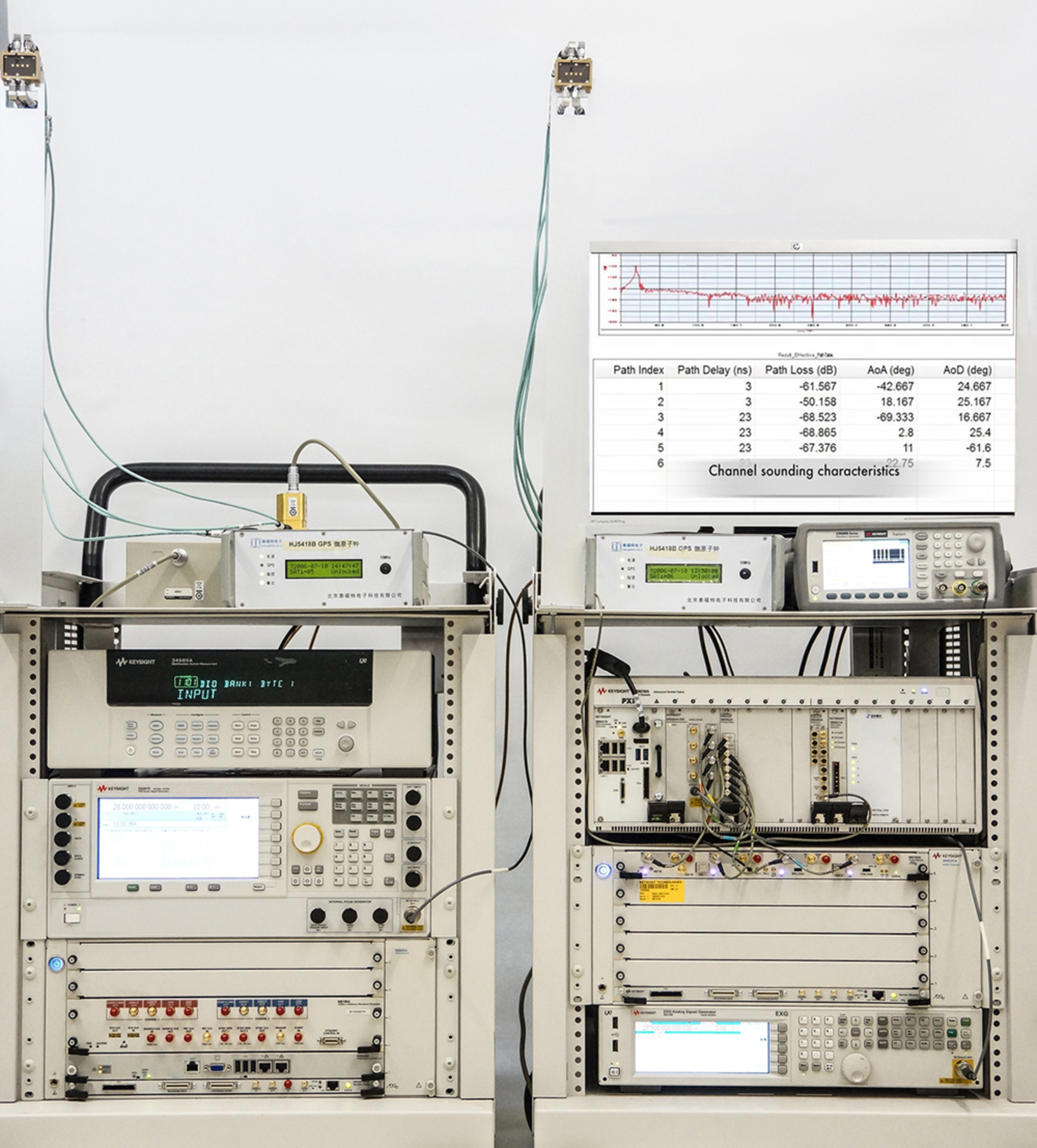

Among the mobile broadband requirements of 5G are new technologies yielding over-the-air data rates of as much as 10 Gb/s. To achieve these requirements, new air interfaces are being developed to operate in frequency bands from 10 to 100 GHz. The 5G Channel Sounding Reference Solution combines metrology-grade hardware, software, and expertise to allow customers to quickly characterize the channel behavior in these frequency bands and enable researchers to develop the necessary channel models for designing and validating air-interface alternatives.
“As a recognized leader and provider of world-class wireless technology solutions, Keysight, in collaboration with key customers, plays a pivotal role in 5G wireless research,” said Keysight’s Mario Narduzzi, marketing manager, Software and Modular Solutions Division. “Our 5G Channel Sounding Reference Solution enables customers to accelerate 5G research and reaffirms our commitment to support them through the evolution from 4G to 5G technology.”
Researchers can get very accurate absolute delay measurements with system-wide calibrations, precise timing, and synchronization. They will also save time and disk space by using the multichannel, real-time data processing, and correlation of the channel impulse response data (CIR) offered by the M9703A high-speed digitizer FPGAs. Engineers can use Keysight’s SystemVue system-level design and simulation software platform to calculate channel parameter estimations and perform link-level simulations and validation of new 5G designs with the imported channel models.
Keysight’s 5G channel sounding Reference Solution also enables
- Tx/Rx up to 44 GHz with 1-GHz bandwidth for four or eight MIMO channels
- capture of multiple phase-coherent channels for real-time CIR data processing in FPGAs,
- system-level calibration and synchronization to achieve precise timing and accurate measurements,
- flexibility and scalability to add more channels and tests as 5G standards evolve, and
- customization of waveforms, models for channel parameter extractions and system integration.
Keysight’s 5G Channel Sounding Reference Solution is available now.
