Multi-Octave Wilkinson Power Dividers Cover 0.5 to 2.7 GHz For DAS

Dec. 13, 2013
Multi-octave power dividers/splitters cover popular communications bands from 0.5 to 2.7 GHz and are suited for in-building DAS or test environments.

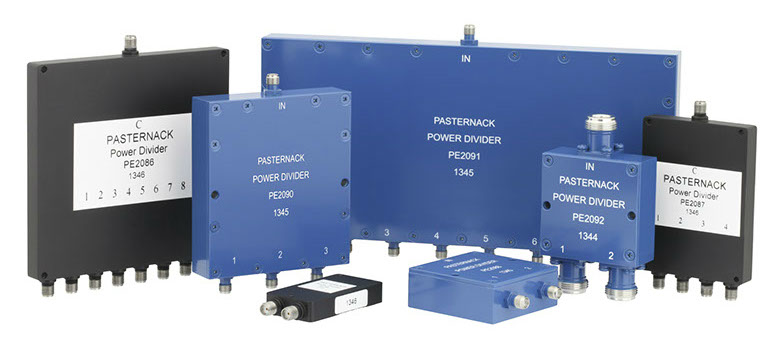

A new line of multi-octave Wilkinson power dividers (aka splitters) from Pasternack, PE20xx, cover popular communications bands from 0.5 to 2.7 GHz including 3G and 4G, plus WiFi bands and are well suited for applications such as in-building distributed antenna systems (DAS) or test environments. The 0.5 to 2 GHz band power dividers utilize SMA connectors and are available as 2-way, 4-way and 8-way configurations. The 0.7 to 2.7 GHz band power dividers are available with SMA or N connectors, and are available in 2-way, 3-way, 4-way and 8-way configurations. Both Wilkinson splitter designs boast accurate performance across their designed frequency bands, suiting them for many wireless applications including in-building DAS. The MIL-STD-348 and RoHS compliant Wilkinson power splitters consists of eleven part numbers total. Power ratings for the group range from 10 to 30 W and have maximum insertion loss of 1.2 dB. Maximum VSWR is 1.4:1 and phase balance ranges between 2 and 8 degrees. All eleven new part numbers are in-stock and available now.
