IP67-Sealed Tact Switch From Rated To 10 Million Operating Cycles

April 9, 2013

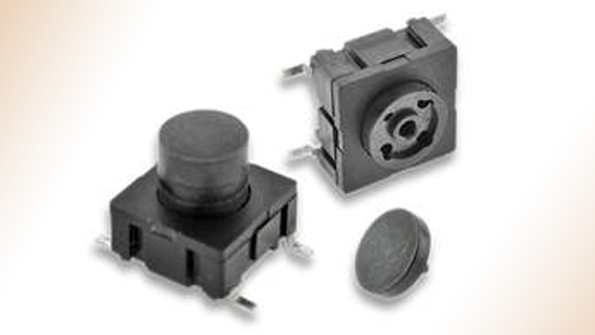

A long-life sealed tactile switch developed by E-Switch comes in surface-mount (gullwing) and through-hole termination options

A long-life sealed tactile switch developed by E-Switch comes in surface-mount (gullwing) and through-hole termination options. The TL6200 series switch maintains an operating life of 10 million cycles, and moisture protection is rated to IP67 standards. The single-pole, single-throw (SPST) device offers multiple actuator lengths. With a contact rating of 50 mA at 24 V dc, it features a contact resistance of 30 mΩ maximum (initial), and insulation resistance of 10 MΩ minimum. Dielectric strength measures to 250 V ac for one minute. Operating and storage temperature both range from −40° to 85°C. Among the application areas are consumer electronics, medical devices, audio/visual, computer peripherals, instrumentation, and telecommunications.

E-SWITCH INC.
