Rugged Panel-Mount Indicators Bolster Safety In Extreme Conditions

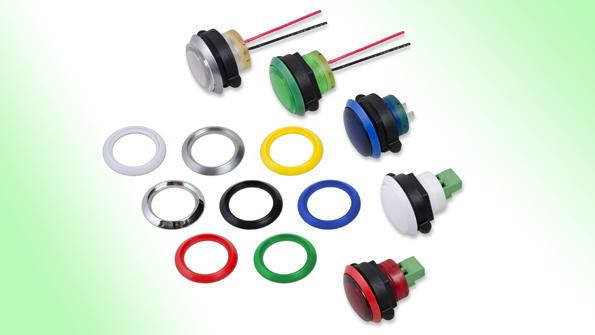

Indicators often must contend with harsh environments, prompting VCC to develop its CNX 722 series of TuffLEDT indicators. Resistant to shock, vibration, and moisture, the 22-mm panel-mount indicators feature built-in LEDs that are visible in both direct sunlight and at wide angles. The LEDs come in red, yellow, green, blue, and white, and can be used in 5-, 12-, or 24-V dc circuits. Optional bezels, available in black, red, yellow, green, blue, white, aluminum, brushed aluminum, and chrome, provide a smooth, cosmetic finish. The indicators come in clear or color-coordinated polycarbonate, or a glowing polycarbonate-acrylic blend. Fast pitch threads and special nut assemblies help accelerate installation. Termination styles include screw block, quick disconnect solder terminals, and wire lead. The TuffLEDTs, moisture-sealed to IP67/NEMA 6P, are rated for use between −40° to 80°C, and can withstand current up to 20 mA. They can accommodate panel thicknesses up to 7.6 mm.VISUAL COMMUNICATIONS CO. (VCC) LLC
