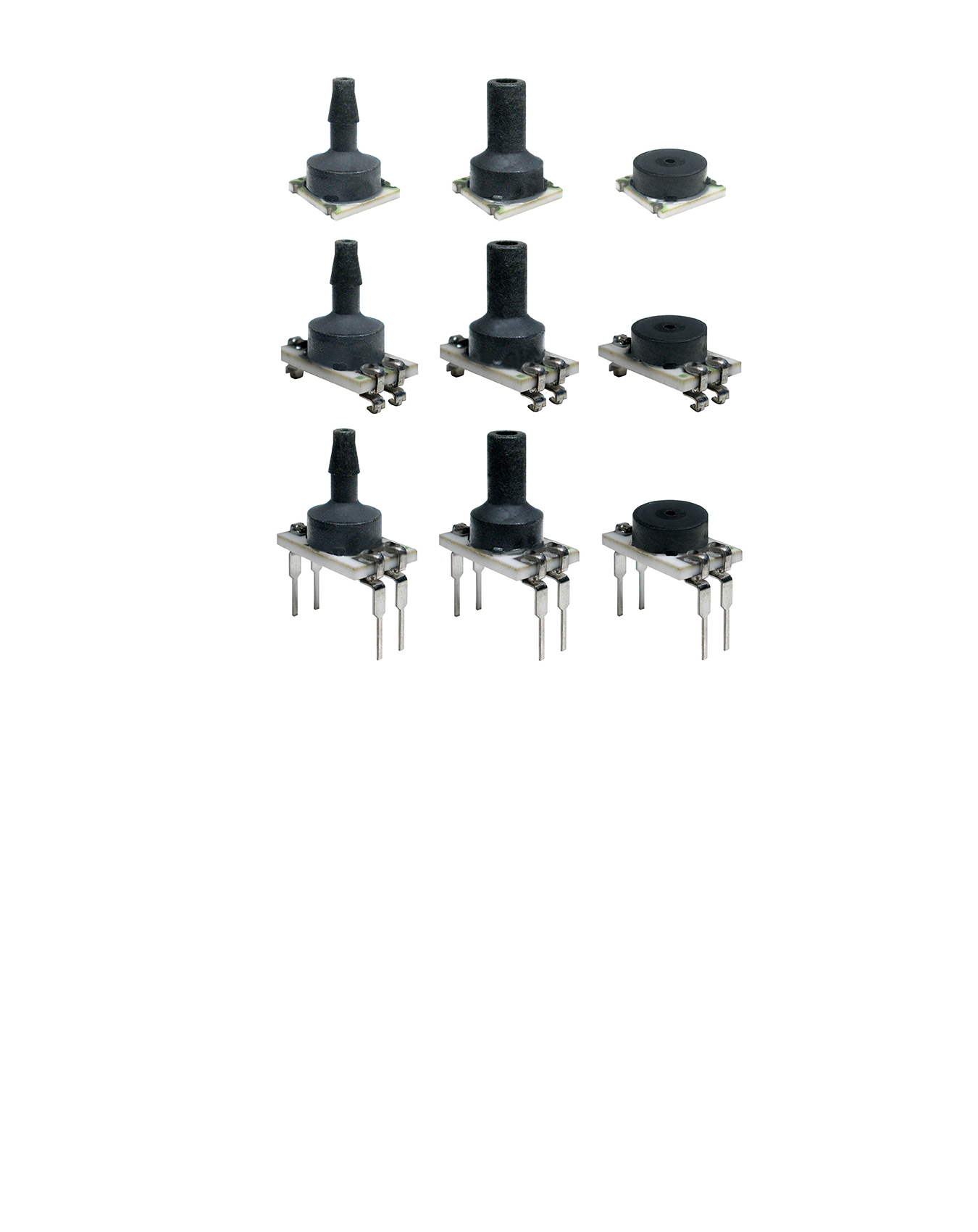

Honeywell’s new basic board mount pressure sensors, the TBP Series, are designed for customers who require a high quality, basic performance, mV output sensor that is compensated and unamplified so they can do their own amplification while retaining maximum resolution. Used to measure gauge pressures, the sensors may also potentially be used in medical applications including hospital beds, oxygen concentrators, wound therapy and blood pressure monitoring, and industrial applications such as HVAC transmitters, air movement control, environmental control, leak detection, pneumatic controls and other commercial applications. Designed and manufactured according to ISO 9001 and ROHS, the sensors offer a wide pressure range (1 psi to 150 psi, 60 mbar to 10 bar, 6 kPa to 1 MPa) and an operating temperature range from -40°C to 125°C and a 0°C to 85°C compensated temperature range. Their small size of 7 x 7 mm helps to simplify installation. The TBP Series have an unlimited shelf life after the packaging is opened, can be calibrated within one hour after reflow solder, and are compatible with modern lead-free, no-clean solder processes. Samples of the TBP Series basic board mount pressure sensors are available now.
