IEC Inlet Filters

June 13, 2013

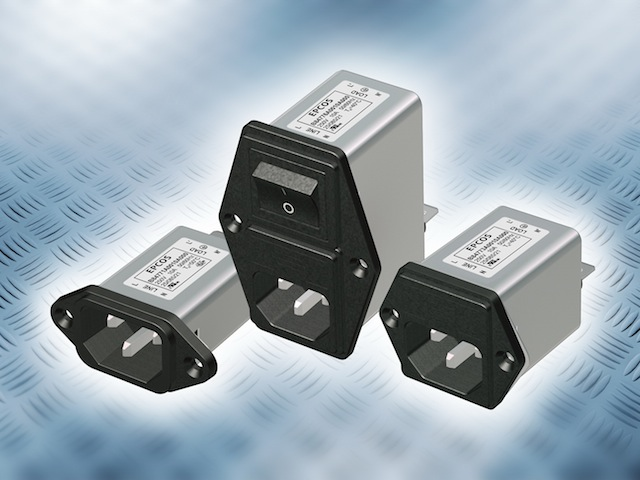

TDK Corporation has expanded the EPCOS B84771 IEC inlet filter series with two new series, one with a fuse and the other with a fuse and a switch.

TDK Corporation has expanded the proven EPCOS B84771* IEC inlet filter series with two new series. The B84773* series features an integrated fuse, and the B84776* series has both a switch and a fuse. All series are also available as versions for medical applications with a maximum leakage current of 2 µA, which makes them particularly suitable for applications in which minimized leakage current is important.

Both new series contain a fuse holder for two fuses with a diameter of 5 mm and a length of 20 mm. The power switch of the B84776* series is of bipolar design that separates the phase and the neutral conductor. The rated voltage of the connector filters is 250 V AC at 50/60 Hz. They are designed for rated currents from 1 A to 10 A. The B84711* version is even available for rated currents up to 20 A. The filters are attached to the equipment with screws or snap-in clips. They are connected via flat connectors with dimensions of 6.3 mm x 0.8 mm or litz wires (B84771*).

All filters were designed for maximum ambient temperatures of 85o C and are RoHS-compatible. The B84771* versions already have UL/CSA/ENC approval. Both the B84773* and B84776* series have received UL/CSA approval. ENEC approval is pending.

Typical applications of these new IEC inlet filters are switch-mode power supplies, office and measuring instruments, arcade machines, electronic POS systems, small electrical machines, fitness equipment, and equipment for medical applications.

Delivery is in 8 weeks. Pricing varies depending on part selected and quantity.
