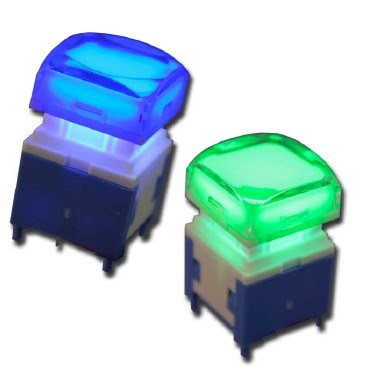

RGB Illuminated Pushbutton Switch

The AD Series from CIT Relay and Switch offers a complete switch solution for all panel needs, including home keys.
April 1, 2014

The CIT Relay & Switch AD Series offers a complete switch solution for all your panel needs, including home keys. Long travel of 4.5mm (standard) for AD01 or shorter travel of 3.5mm on the AD02, actuation force of 250 +/- 50gF. Contacts with gold plating assure high reliability and long life of 5,000,000 operations typically.

Available with red, green, yellow, blue and white LED colors. Six bicolor LEDs and custom RGB LEDs provide unlimited color combinations. Compact design with numerous combinations of diffuser, semi-transparent and transparent cap options offer design flexibility in your applications. Pad printing and laser etching colors and styles make this versatile switch a must-have for designers.

Common applications for the AD Series pushbutton switches include broadcasting and audio video equipment. Pricing ranges from $3.37, dependent upon options and volume. CIT Relay & Switch lead time is six to eight weeks.
