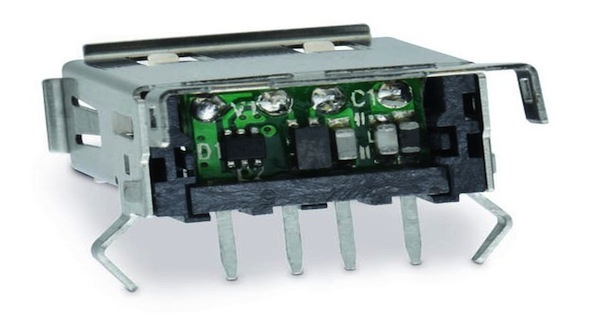

Wurth Electronics offers a USB 2.0, type A jack, the WE-EPLE, the first and only USB jack with an integrated EMC filter and ESD protection.
Wurth Electronics offers a USB 2.0, type A jack, the WE-EPLE, the first and only USB jack with an integrated EMC filter and ESD protection. It is pad-compatible with most conventional USB jacks, and the dimensions also stay the same. Existing designs are transformed into EM-Compatible designs in little time.
The integrated EMC filter eliminates broadband interference on voltage and signal lines, and at the same time, is almost invisible for the signal lines.
This means:
VCC filter impedance above 100 W in the 20MHz range to an excess of 1GHz
Common-mode suppression at 240 MHz in excess of 250 W
ESD suppression at levels of 10V at level 4 ESD pulses with 15 kV
The WE-EPLE, USB 2.0, type A jack, is compatible with the USB 2.0 standard.
