White Body LED Protectors Enhance Overall Light Engine Efficiency

Sept. 30, 2013
Littelfuse, Inc. has introduced an addition to the company's PLED Open LED protection devices line.

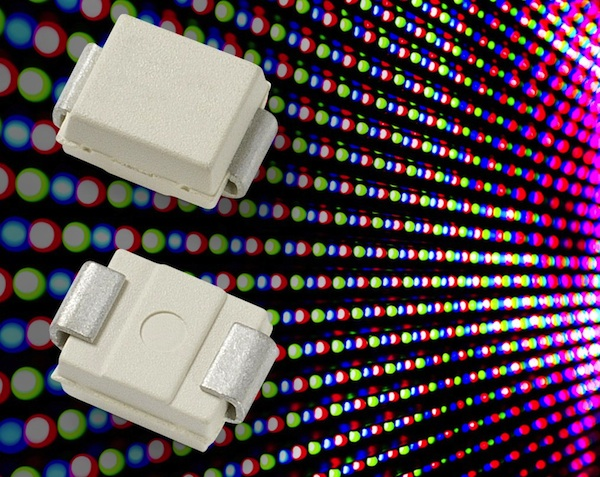

The latest addition to Littelfuse's PLED Open LED protection devices line, the PLEDxSW Series LED Protector, is molded from a white material which makes it less noticeable in LED fixtures, particularly for indoor applications. It also reflects more light to improve overall light engine efficiency.

This device provides an electronic shunt path when an LED in an LED string fails as an open circuit. PLED devices are connected in parallel  with each LED in a series string. If one LED fails as an open circuit,  the PLED connected to it turns on and carries the current that would have gone through the failed LED. This keeps the rest of the string operating, so only a single LED goes dark rather than the whole string.

PLEDxSW Series LED Protectors are compatible with 1-, 2-, and 3-watt LEDs. Their low-profile, small-footprint package dissipates heat efficiently, so they're ideal for use in dense board applications. In contrast with earlier open LED protection solutions such as silicon  controlled rectifiers (SCRs) and zener diodes, they offer higher  reliability and lower maintenance requirements. For example, SCRs are  usually large and require additional components like resistors to set  the trigger or turn-on voltage, and their trigger voltage will vary  widely over temperature.  Zener diodes create additional power dissipation once the LEDs they're protecting fail open. They are also not rated for large DC currents, which can shorten life or lead to catastrophic failure.

Typical applications of PLEDxSW Series LED Protectors include protection of lighting products that incorporate strings of high-brightness LEDs,  including indoor lighting, aircraft/runway lights, and advertising  signage.

PLEDxSW Series LED Protectors offer these key design benefits:

·     Protector is less visible in the LED fixture; reflects more light to enhance overall light engine efficiency

·     Remainder of LED string can continue to function even if one LED fails as an open circuit

·     Standard SMB package provides layout flexibility; maximum heat dissipation makes it ideal for dense board applications

·     Low maintenance, high reliability

·     Environmentally friendly product

PLEDxSW Series LED Protectors  are available in quantities of 2,500 in tape and reel packaging. Samples are available now for bulk orders; sample requests can be placed through authorized Littelfuse distributors worldwide.
