AC-DC LED Driver with Universal Input Range of 90-264 VAC

Aimtec's new 8 Watt AMEPR8D-AZ series AC-DC LED Driver series operates with a universal input range of 90-264 VAC with 47-440 Hz frequency and has options for current dimming through a triac. This versatile product is feature rich with input to output isolation of 3000 VAC, plus continuous short circuit protection, over voltage protection, over load protection, IP67 rating, plus with an operating temperature range of -20°C to +80°C (with derating at 60°C).

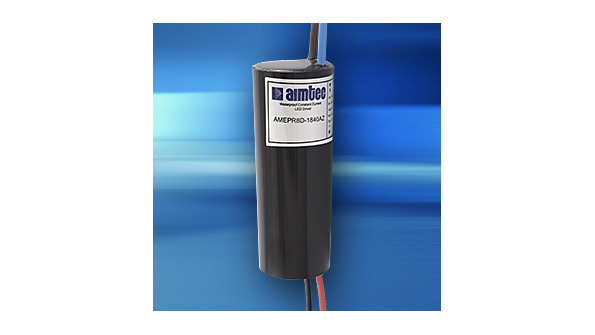

Any of the models from the series can be used either with universal input voltage range supply from 90 to 264 VAC or with any of the triac specific voltage ranges: 90-135 VAC or 180-264 VAC. The AMEPR8D-AZ series AC to DC LED Drivers come in a cylindrical package with Ø26.5 and length of 70 mm and could be used in retrofit lighting and indoor electrical boxes.
