Framework Ports Deep Neural Network to Vector DSP

Nov. 16, 2015
CEVA’s new framework ports Deep Neural Network to its CEVA-XM4 vector DSP architecture.

Deep Neural Networks (DNNs) are becoming more popular as mechanisms to identify all sorts of object recognition and vision analytic tasks. One open-source platform that is popular in this space is Caffe, a deep-learning framework developed at the Berkeley Vision and Learning Center (BVLC).

Caffe can run on many platforms including GPUs, but this can require powerful and power-hungry platforms. It also utilizes a floating point. Converting algorithms to fixed point can allow these applications to run more quickly while maintaining accuracy within 1% of the original floating point implementation. This is the premise behind CEVA’s new CEVA Deep Neural Network (CDNN).

Deep neural networks use a large number of layers. This approach helps when recognizing features. The network design can be reused and easily trained using new input data.

1. The CEVA Deep Neural Network framework converts floating point DNNs into fixed-point implementations that target the CEVA-XM4 architecture.

The CDNN framework (Fig. 1) turns floating-point DNNs into more efficient fixed-point that can run on CEVA-XM4 vector DSP architecture. The algorithm and network are normally created using Caffe. A database of images is processed to create the floating point DNN implementation. This in turn is converted by the CEVA software into a fixed-point version that can run on the CEVA-XM4 platform.

2. The CEVA framework targets the CEVA real-time libraries. The CEVA hardware can run all of the code or some of the work can be done by the host.

Preprocessing images to train the neural network is a typical approach since most embedded applications will not do training in the field. For example, pedestrian and obstacle recognition for an automotive application will need to handle these chores immediately. Its operation also needs to be consistent from one car to another.

The CEVA framework targets the CEVA real-time libraries (Fig. 2). The library APIs allow an application to run on CEVA hardware or the code can be split so some work can be done by the host.

3. The CEVA-XM4 architecture is a vector-processing DSP with a dedicated, pixel processing VLIW/SIMD architecture that contains 9 functional units and a 14-stage pipeline.

CEVA worked with Phi Algorithm Solutions to develop the preprocessing operations such as scaling input. This can run on the CEVA hardware or on the host. It can also be replaced by a developer or different third-party implementations can be used.

The CEVA-XM4 architecture (Fig. 3) is a vector-processing DSP with a dedicated, pixel processing VLIW/SIMD architecture that contains nine functional units and a 14-stage pipeline. Normally developers will incorporate the CEVA-XM4 IP into a custom system-on-chip (SoC). The architecture supports fixed- and floating-point data. The architecture supports single or multicore implementations. The software can adjust to fully utilize the available hardware.

4. The CEVA-XM4 development board uses only 28 mW of power to handle a typical pedestrian DNN implementation.

The resulting system can used 30 times less power a comparable GPU implementation that would use floating-point while being three times faster. It also requires 15 times less memory bandwidth.

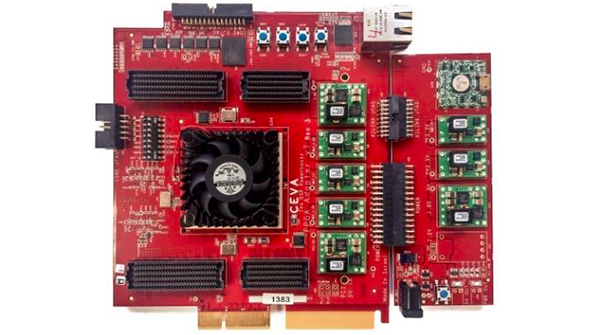

The CEVA-XM4 development board (Fig. 4) uses only 28 mW of power to handle a typical pedestrian DNN implementation. The board uses CEVA’s chip. This software can then be ported to the custom SoC. The platform was used to handle the pedestrian recognition application implemented using Phi’s Universal Object Detection (UOD) DNN algorithm. The system can run with a 1080p, 30 frame/s data stream.
