ON Semiconductor introduced an advanced and flexible Motor Development Kit to accelerate the development of more efficient motor control solutions for applications ranging from less than 1 kW to over 10 kW. The Kit comprises one of a growing number of Power Boards, connected to a Universal Controller Board (UCB). The Power Boards feature various incarnations of ON Semiconductor inverter solutions for motor drive, from high voltage integrated modules to low voltage, discrete MOSFETs. The UCB is a common control platform that interfaces with any Power Board to enable engineers to evaluate alternative motor control techniques for various types of motors and at a wide variety of power levels.
The UCB is based on the Zynq®-7000 SoC family from Xilinx, and integrates two ARM Cortex-A9 processor cores alongside an FPGA fabric, providing the optimum combination of software and hardware configuration. The board also features a 10-channel differential ADC, 12 PWM channels and a number of configurable digital peripherals. Communication ports include USB, JTAG and UART, as well as a Gigabit Ethernet PHY.
ON Semiconductor's MDK provides an 'out of the box' experience for evaluating variable speed motor inverter solutions. To enable this, the modular ecosystem includes the UCB and a number of power evaluation boards, developed using ON Semiconductor's best in class power components. Support for software development comes from Xilinx in the form of the Vivado® Design Suite for High-Level Synthesis. The UCB can also be programmed using Python, through Xilinx's open source project, PYNQ.

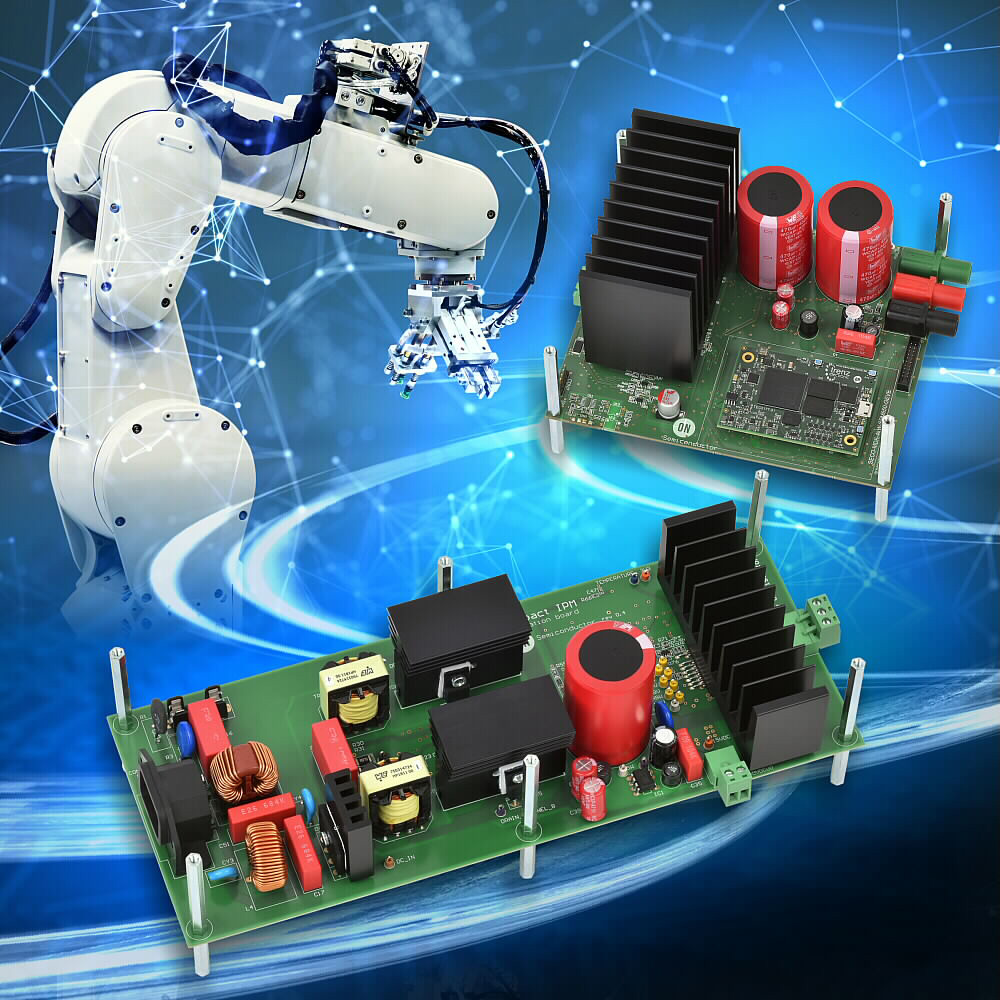

The MDK currently supports two motor power boards; the SECO-1KW-MCTRL-GEVB, which is suitable for driving motors up to 1 kW, and the SECO-MDK-4KW-65SMP31-GEVB, for driving motors up to 4 kW. Both of these power boards use ON Semiconductor's IPM technology and will be available in Q4, 2020. An additional motor power board will be released in Q1, 2021, based on ON Semiconductor's TMPIM technology, designed to drive motors up to 10 k.
