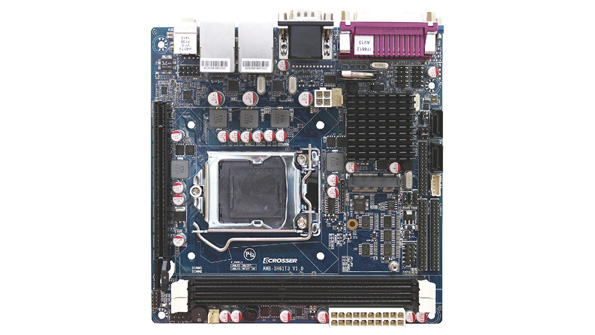

The AMB-IH61T3 Mini-ITX motherboard, powered by an Intel H61 chipset supporting 2nd/3rd-generation Intel Core i7/i5/i3 processors, offers flexible connectivity and multiple high-speed I/O ports to meet kiosk and industrial-automation needs. Along with eight USB ports/headers and 10 serial ports/headers (RS-232/-485), ACROSSER’s board features one PCIe x16 slot and one Mini PCIe slot to boost graphics power. It’s even possible to leverage an additional graphics card on top of the PCIe slot to improve visual effects for gaming applications, or use the multiple displays for industrial-automation purposes. Two 240-pin DIMMs support DDR-1333/1066 SDRAM up to 16 Gbytes. Other ports include two Gigabit Ethernet, two VGA, and two SATA II. Operating temperature for the 170- by 170-mm board ranges from 0 to 50°C (storage temp ranges from ‒20 to 80°C).
