180 W AC-DC Power Supply Combines Low Profile, High Efficiency

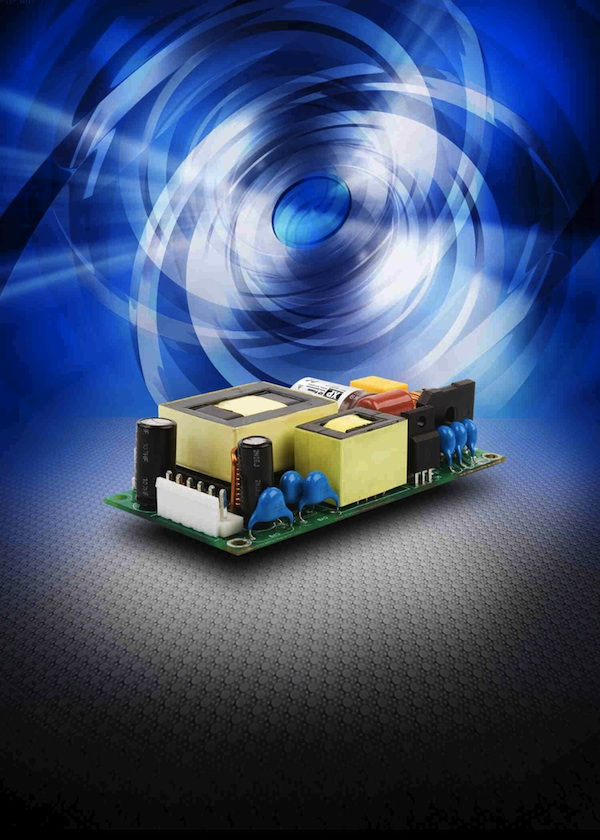

XP Power's ECP180 series of low profile high efficiency "green power" open frame 180 Watt AC-DC power supplies have an average active mode efficiency of 93% and consume less than 0.5 W at no-load. With these energy saving credentials the ECP180 produces less heat and assists designers of end-systems to meet current "green" energy efficiency standards. The highly efficient design also enables the units to provide a convection cooled rating of 120 Watt, with the full output power of 180 Watts needing only 10 CFM of forced airflow.
Occupying 46% less footprint than the industry standard 3 x 5 inch power supply, the ECP180 measures just 2.0 x 4.0 inches (50.8 x 101.6mm), with reportedly the lowest profile in its class of only 1.0 inch (25.4 mm). With PFC and a universal wide input range of 85 to 264 VAC, the ECP180 is available in 6 output voltage models providing the popular nominal outputs of +12, +15, + 24, +28, +36 or +48 VDC. A secondary 12 VDC / 0.5 A fan output is standard across the range.
Meeting the ITE safety specifications of UL/IEC/EN 60950-1 and the latest stringent 3rd edition medical safety standards ANSI/AAMI ES 60601-1 and IEC/EN60601-1, the ECP180 series is suitable for use in a wide range of information technology, industrial and medical equipment applications. The units also comply with the internationally recognized EMC standards EN55011 and EN55022 Class B specifications for conducted noise emissions.
The ECP180 accommodates an extended operating temperature range from -20 to + 70 °C, with no derating until +50 °C.
The ECP180 is priced at $83.46 for a 500 pcs order.
