imec, Holst Centre present efficient digital receiver for Bluetooth 5 and beyond
Leuven, Belgium. imec and Holst Centre have developed a novel phase-tracking receiver bringing further power and cost reduction for the next generations of Bluetooth and IEEE 802.15.4 radio chips. The ultra-low power digital-style receiver is 3x smaller than the current state-of-the-art. It supports supply voltages as low as 0.85 V and consumes less than 1.6 mW peak. An innovative low-power antenna impedance detection technique enhances radio performance, especially for wearables or implantable applications.
The ongoing evolution towards an intuitive IoT has created unprecedented opportunities in
various application domains. However, the deployment of massive numbers of interconnected sensors requires ultralow power solutions enabling multi-year battery life. To increase the autonomy of sensors, imec develops ultra-low power wireless technology for IoT applications, such as next-generation Bluetooth low energy and IEEE 802.15.4.

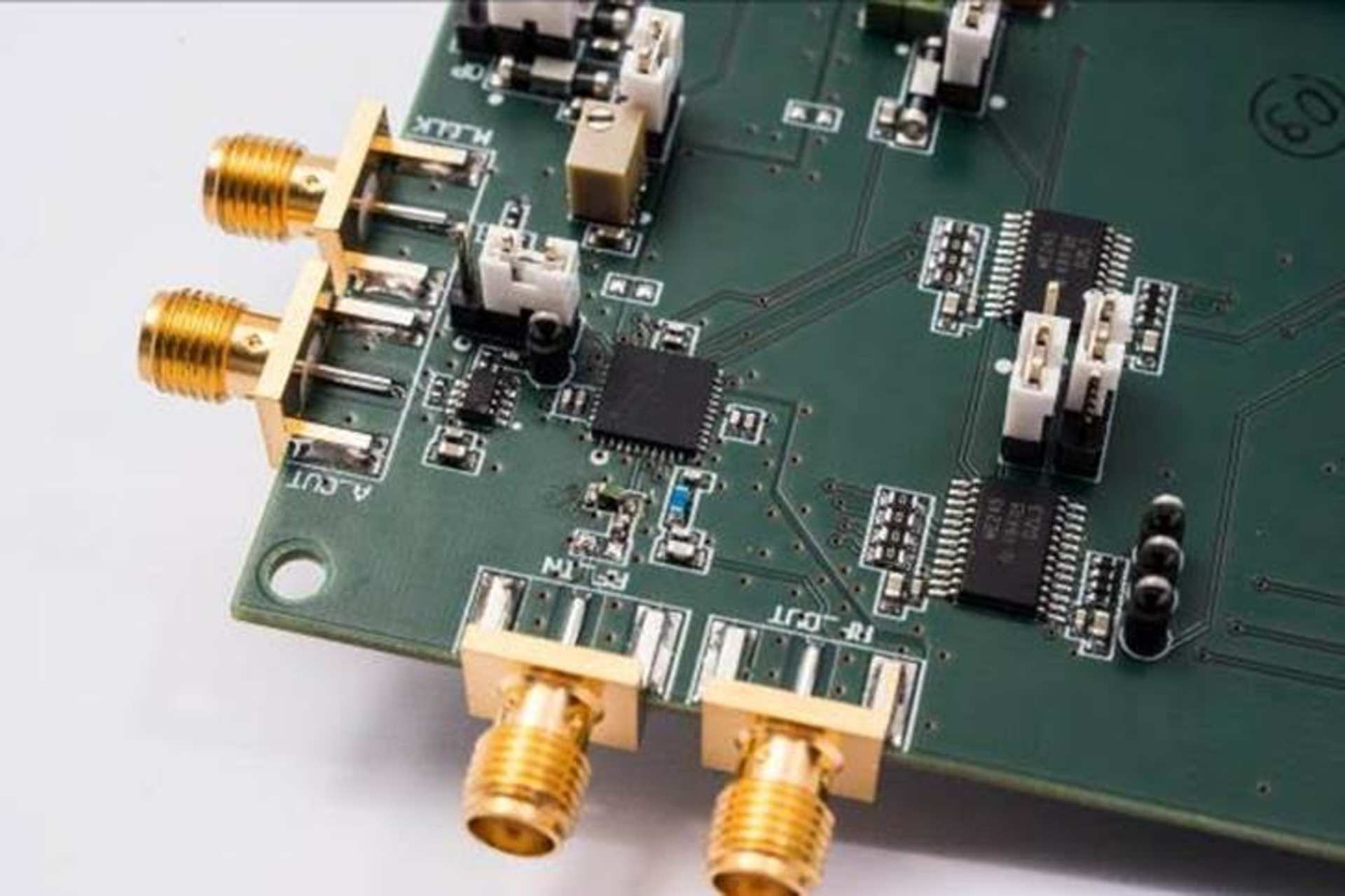

imec’s novel receiver concept features sub-1-nJ/bit energy efficiency and low supply voltage operation at 0.85 V while maintaining similar receiver sensitivity as best-in-class products. The receiver employs digital phase-tracking to directly translate the RF input to demodulated digital data. A digitally-controlled oscillator (DCO) is used instead of a power-hungry phase locked loop (PLL). The receiver, implemented in 40-nm CMOS, is only 0.3 mm2, which is at least 3x smaller compared with the state-of-the-art. Due to this small size it can be manufactured at strongly reduced cost.
Especially in wearable or implantable devices, the antenna impedance can dynamically change due to variations in a device’s position or surroundings. This can deteriorate the radio’s performance and degrade battery lifetime. imec demonstrated a fully integrated, sub-mW impedance-detection technique for ultralow-power radios, enabling tunable matching between the antenna and the radio front-end. This technique can be implemented in an adaptive radio front-end to further improve receiver sensitivity and transmitter efficiency in the presence of antenna impedance variations.
“This innovative receiver concept will not only serve the new Bluetooth 5 devices, but provides our industrial partners a long-term competitive advantage for multiple new generations of Bluetooth and 802.15.4 radios, still to come.”, said Kathleen Philips, program director, Perceptive Systems at imec/Holst Centre. “This great achievement is a confirmation of our continuous efforts to push the technology limits toward ever higher performance, lower power consumption, and smaller form factor, which are essential features for internet-of-things radio solutions.”
