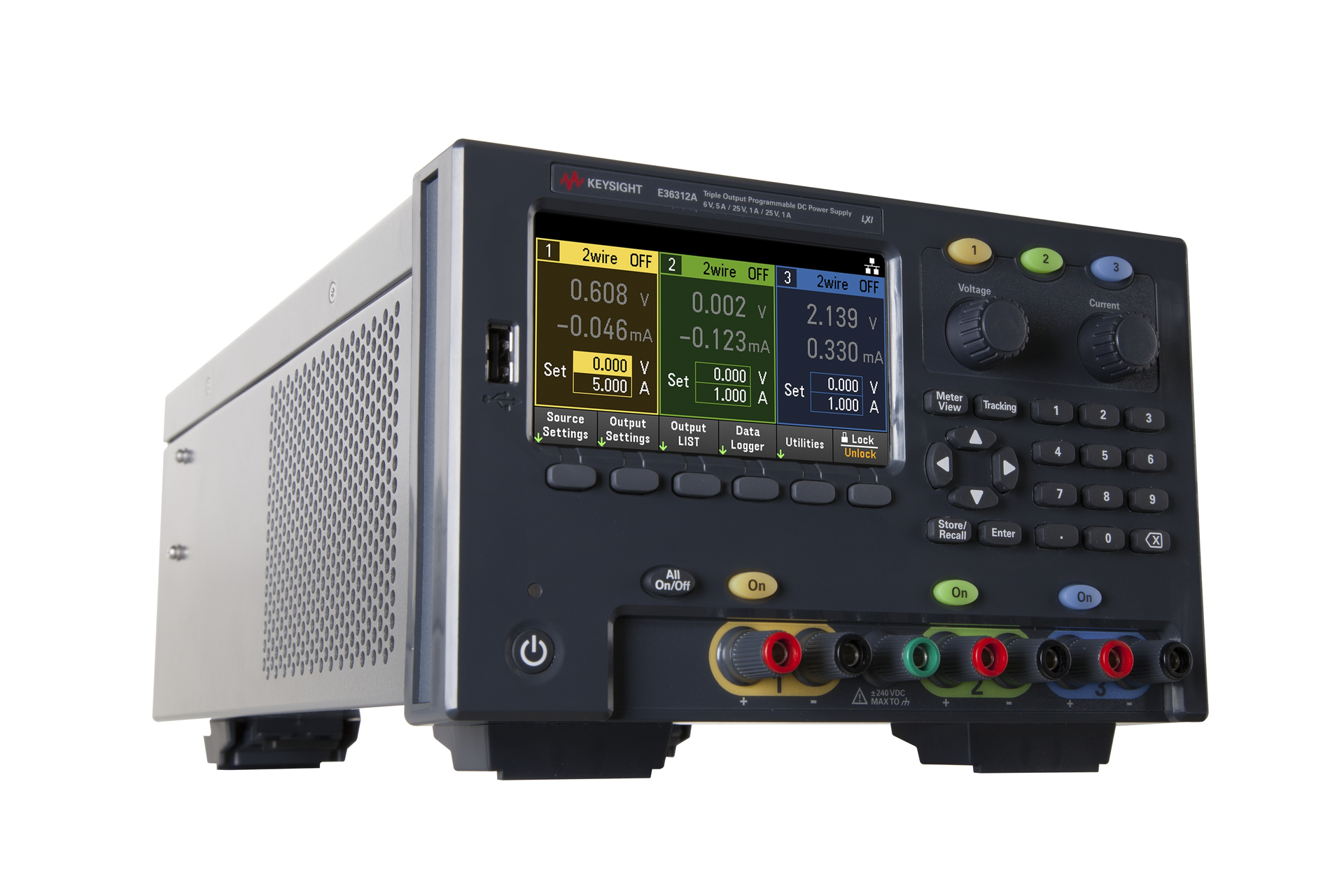

Keysight triple-output power supplies facilitate early simulation

“Today’s complex electronic designs place higher demands on the systems that power them,” said Bill Griffith, application engineering manager at Keysight. “But these power systems often cause design problems, and basic power supplies may be incapable of uncovering them. With the E36300 Series, engineers can simulate power problems early in the design cycle. And advanced features, such as low-current measurements, auto-series and auto-parallel connections, sequencing, and data logging, help them detect power problems.”

The E36300 Series’ low “normal mode” noise specifications assure quality power for precision circuitry applications, enabling engineers to power their designs with confidence. In addition, the power supplies are acoustically quiet. Each model provides line/load regulation of 0.01%, fast transient response time of less than 50 μs, low-range current measurement, and overvoltage, overcurrent, and overtemperature protection to prevent damage to the device under test.

Keysight’s BenchVue software supports the E36300 Series, enabling control of power supplies to set parameters and status alerts, visualize power output, and log changing voltage and current over time. The included Test Flow capabilities let users quickly automate power-supply setups and measurements into test sequences.

In addition to experienced design engineers, the E36300 Series is suitable for new users and students learning to use power supplies for the first time. With a full-menu, front-panel interface, the E36300 Series is easy and intuitive to use. The power supplies provide individual knobs for voltage and current, individual on/off on each channel, and a keypad and softkeys to easily configure the power supply—simplifying operation and improving productivity.

The E36300 Series is available to order now. The list price starts at $1,100.

Product Number

Pow-er

Max. Voltage

Max. Current

Price ($)

E36311A

80 W

6 V, +25 V, -25 V

5A, 1A, 1A

1,100

E36312A

80 W

6 V, 25 V, 25 V

5A, 1A, 1A

1,400

E36313A

160 W

6 V, 25 V, 25 V

10A, 2A, 2A

1,700

www.keysight.com/find/e36300
