Designed for automotive and other high-temperature applications, the reliable FH65 Series is resistant to extreme temperatures from -40 to 125° C.

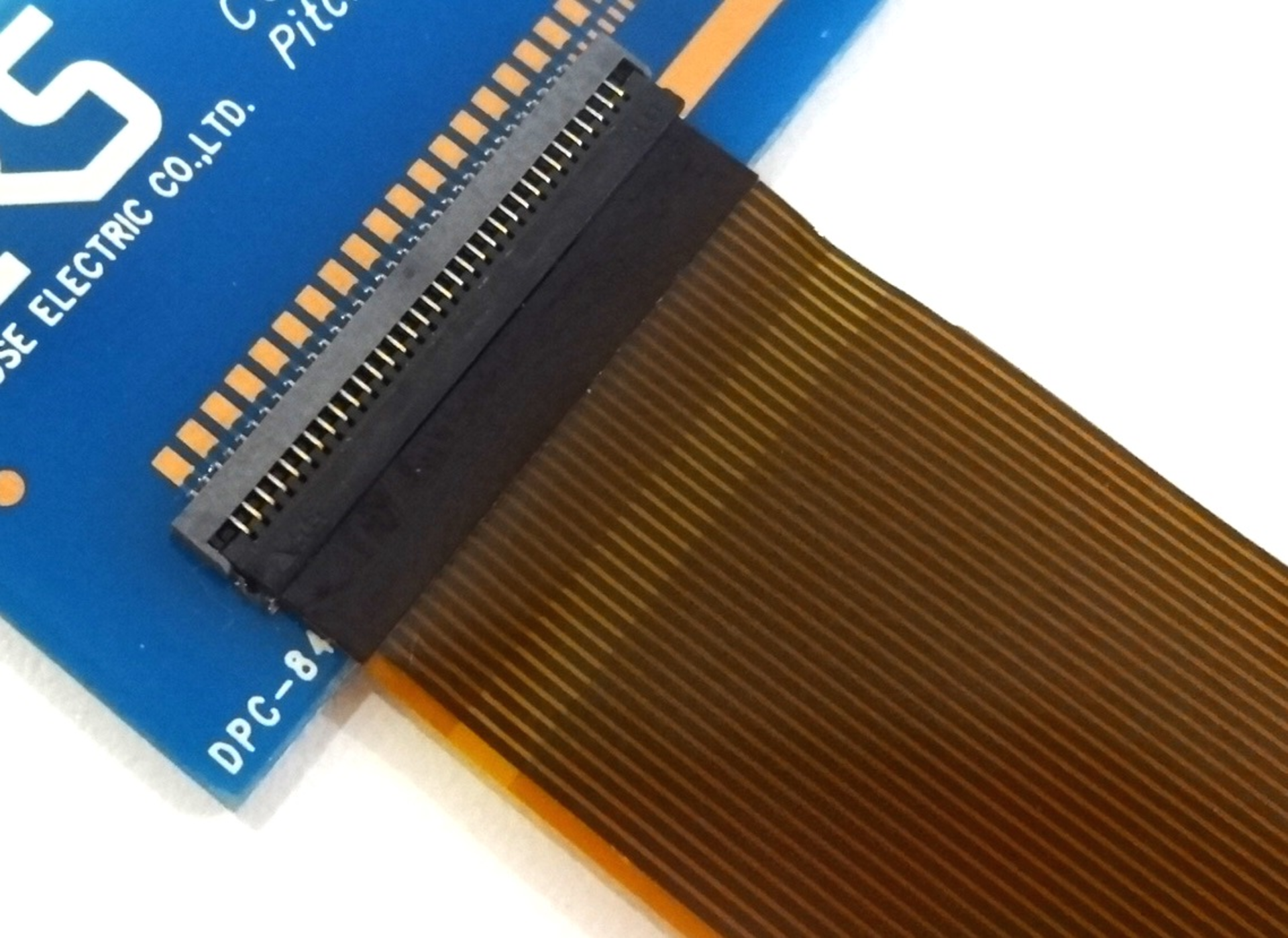

The FH65 Series FPC/FFC connectors have a robust lock with a clear tactile click that confirms actuator locking. The design does not expose contacts on the bottom side of the connector, making the board area under the connector available for PCB patterns.
The actuator is positioned so that solder tabs and terminals firmly retain the actuator, suitable for high-vibration applications. The space-saving I-shaped solder tabs not only allow visual inspection, but also offer a high-retention force of 23 N. With a wide 120-degree FPC/FFC opening and guided positioning, the FH65 Series is easy to use.
“Hirose is a leader in the development of innovative flexible printed circuit and flat flexible connectors. We continue to expand our product offering to meet customer requirements,” said Bill Kysiak, product marketing manager for Hirose Electric USA. “In addition to impressive heat-resistance, the FH65 Series provides the weight and size reductions required in today’s advanced automotive applications.”
The FH65 Series connector is suited for a wide range of automotive applications including camera, millimeter-wave radar, and heads-up display systems.
The FH65 Series is currently available in a 34-position version. The connector meets halogen-free requirements and is RoHS compliant.
The FH65 Series has a rated current of 0.5 A, a rated voltage of 50 V AC/DC, and a contact resistance of 50 mΩ.
