Moticont adds servo actuator to direct-drive linear motor series

July 28, 2017

Van Nuys, CA. The new SDLM-019-070-01-01 direct-drive linear motor is the latest addition to the series of zero backlash, zero cogging, high acceleration, high speed, high resolution, long-life linear servo motors from Moticont. Also known as an electric cylinder, this compact direct drive linear motor is 0.75 in. (19.1 mm) in diameter and 2.75 in (69.9 mm) long. Protected inside the motor housing, the linear optical quadrature encoder is directly connected to the shaft for the greatest possible accuracy. This direct drive linear motor features 1.25 µm (0.000049 in.) in of resolution.

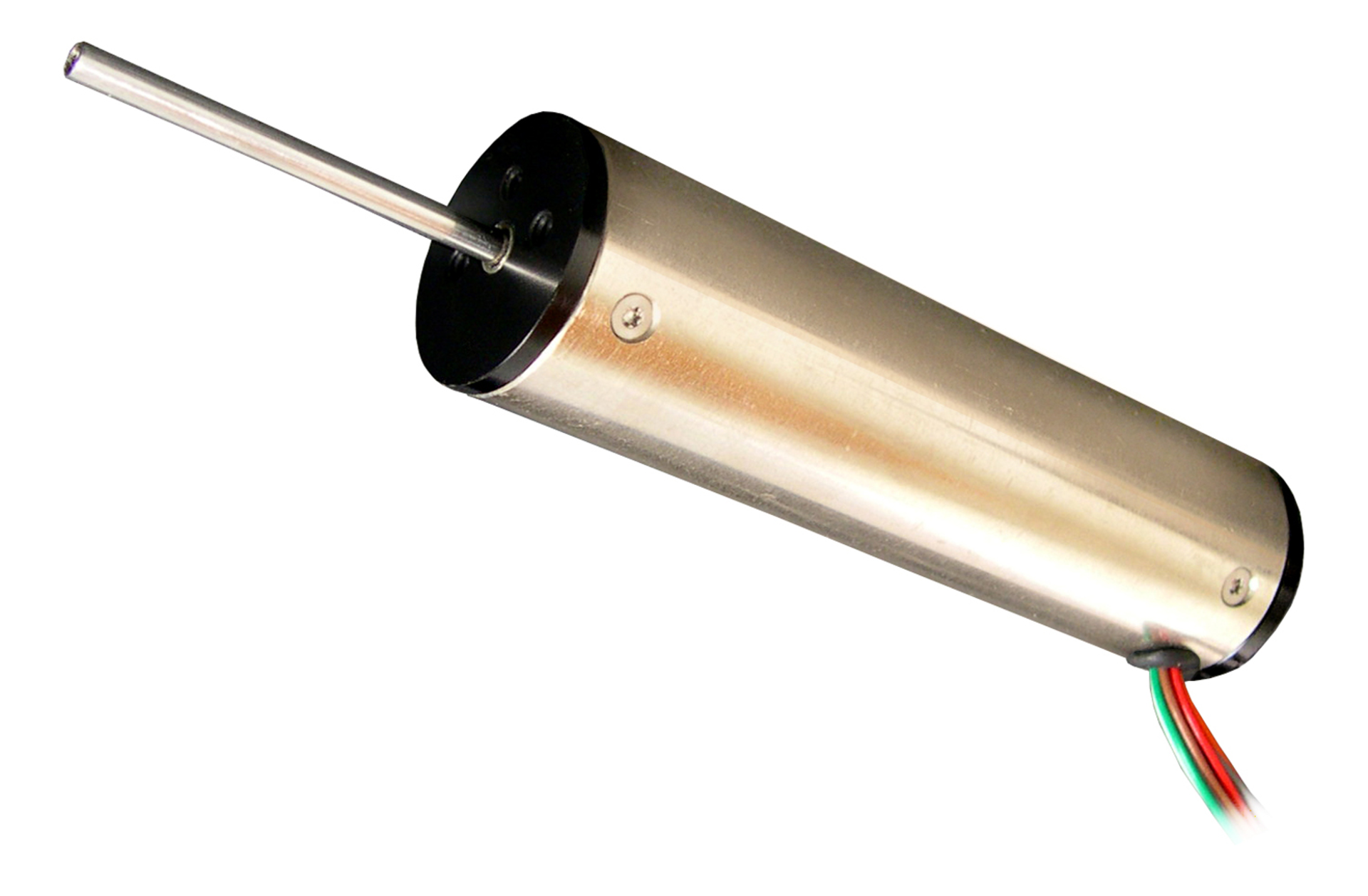

Moticont Sdlm 019 070 01 01 Linear Motor 2017 300x197

The SDLM-019-070-01-01 direct drive linear motor has a stroke length of 0.500 in. (12.7 mm), a continuous force rating of 9.7 oz. (2.7 N), and peak force of 30.7 oz (8.5 N). This non-commutated direct-drive servo motor features quiet long life plain linear bearings, an integrated internal (1.25-micron resolution) quadrature optical encoder with differential outputs, and a non-rotating shaft. Some applications include manufacturing (assembly and inspection equipment), sorting and packaging, semiconductor handling, medical equipment and instruments, antenna positioning, dampers, and valve actuators.

Direct coupling of the load or stage to the low-inertia non-rotating shaft eliminates backlash and allows for high acceleration/deceleration. Both ends of the motor and shaft ends have threaded mounting holes for easy integration into new and existing applications. The SDLM-019-070-01-01 direct-drive linear actuator is also available as a complete plug-and-play linear motion system with a matching motion controller.

http://www.moticont.com
