Inspectis launches high-definition digital microscope

July 31, 2017

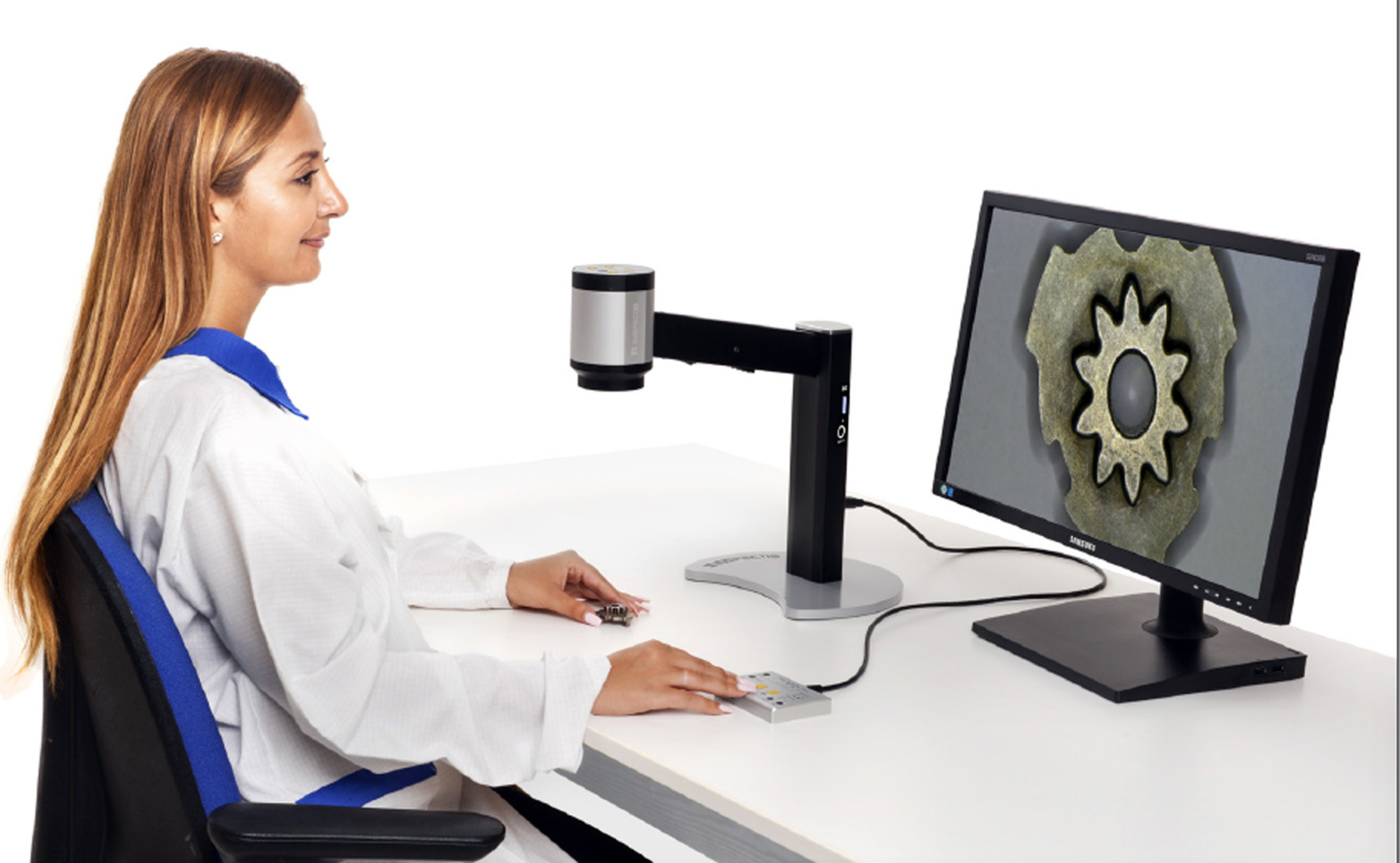

Solna, Sweden. Uncluttered and ergonomic, the new C12 high-definition digital microscope from Inspectis AB is a plug-and-play microscope designed for challenging SMT/PCB electronics assembly and rework applications. The all-in-one optical digital inspection system offers 12:1 optical zoom, auto focus, integrated illumination, on-board controls, and SD-card image capture. The C12 produces crisp images of inspection objects up to 90x magnification directly on an LCD monitor or PC.

The C12 provides relief to eyes, neck, and shoulders through an ergonomic design and 245-mm working distance. By allowing operators to sit comfortably in a good working position, their inspection tasks can be carried out more efficiently. An optional built-in laser pointer aims at the area of interest and assists in locating it on the screen.

Due to the large size of its image sensor and pixel elements, the C12 provides images of such structures as solder joints on PCB assemblies with minimum glare and reflection.

Free of cords and clutter, the C12 offers ease of use with minimal interaction needed with controls and settings. All basic parameters such as zoom, brightness, and color levels can be controlled by the user through on-board buttons on top of the device or through an optional remote control pad. With these control features, camera and lens attributes—including focus, aperture size, image contrast, and white balance—are all controllable, and features including zoom factor display and a crosshair overlay on the live image can be turned on.

Optimized settings can be saved and recalled for individual samples, and to further simplify operation, selected functions can be controlled by a foot pedal. The Inspectis C12 reduces the time spent on inspecting parts when compared to other optical visual systems.

http://www.inspect-is.com/inspectis-systems/
