KEMET introduces 200°C bulk capacitors

Oct. 2, 2017

2 min read

KEMET has announced the launch of the KPS-MCC C0G high-temperature, 200°C bulk-capacitance solution for harsh-environment applications. Developed by combining KEMET’s robust and proprietary C0G/NPO base-metal-electrode (BME) dielectric system with durable lead-frame technology, these capacitors are suitable for demanding high-temperature, high-voltage, and high-vibration applications such as down-hole oil exploration, automotive and hybrid electric vehicles (HEV), and defense and aerospace systems.

The KEMET C0G BME dielectric system is designed to provide high reliability at operating temperatures up to 200°C while maintaining high insulation resistance, low ESR, and high ripple-current capability at high frequencies. In addition, this series provides stability with no capacitance change versus DC voltage and ±30 ppm/°C capacitance change over temperature. A high melting point (HMP) solder for lead attachment enables multiple chips to be stacked in parallel to provide bulk capacitance with mechanical robustness.

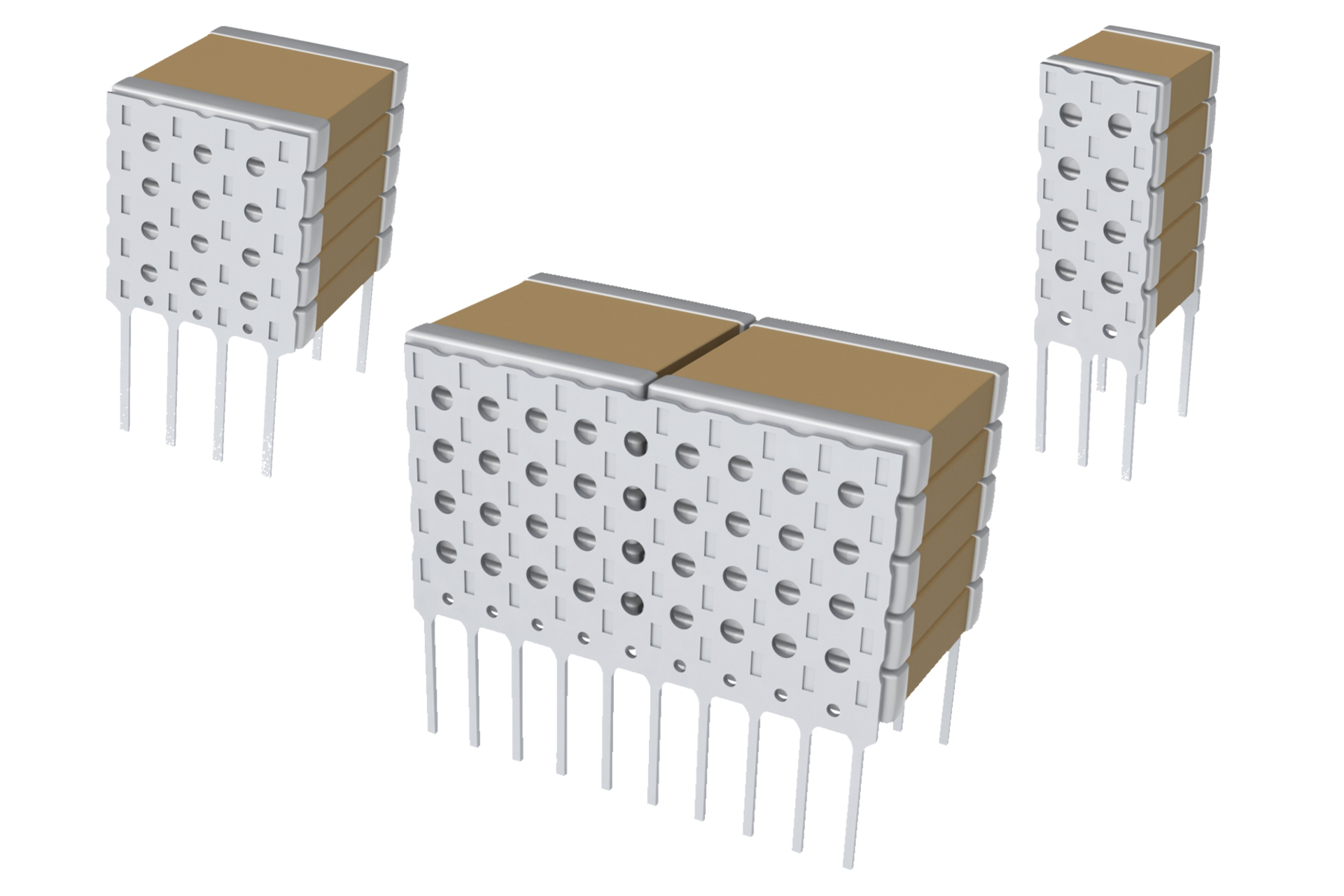

Available in three case sizes, the KPS-MCC Series offers voltages up to 2,000 V and capacitance up to 2 mF in a footprint of less than 0.55 square inches. Each case size can be ordered in a straight pin, formed “L,” or formed “J” configuration and with a silver (Ag) or solder-coated (SnPb) termination finish.

“This latest addition to KEMET’s world-class BME C0G offering extends KEMET’s portfolio up to 2 mF in a Class I solution,” said Dr. John Bultitude, KEMET vice president and technical fellow. “With KEMET’s temperature-cycling resistant lead-frame technology and high ripple current capability, these bulk capacitance solutions provide unparalleled performance for the harshest environments on, under and above the Earth.”

http://www.kemet.com/Hi-Temp-Ceramic
