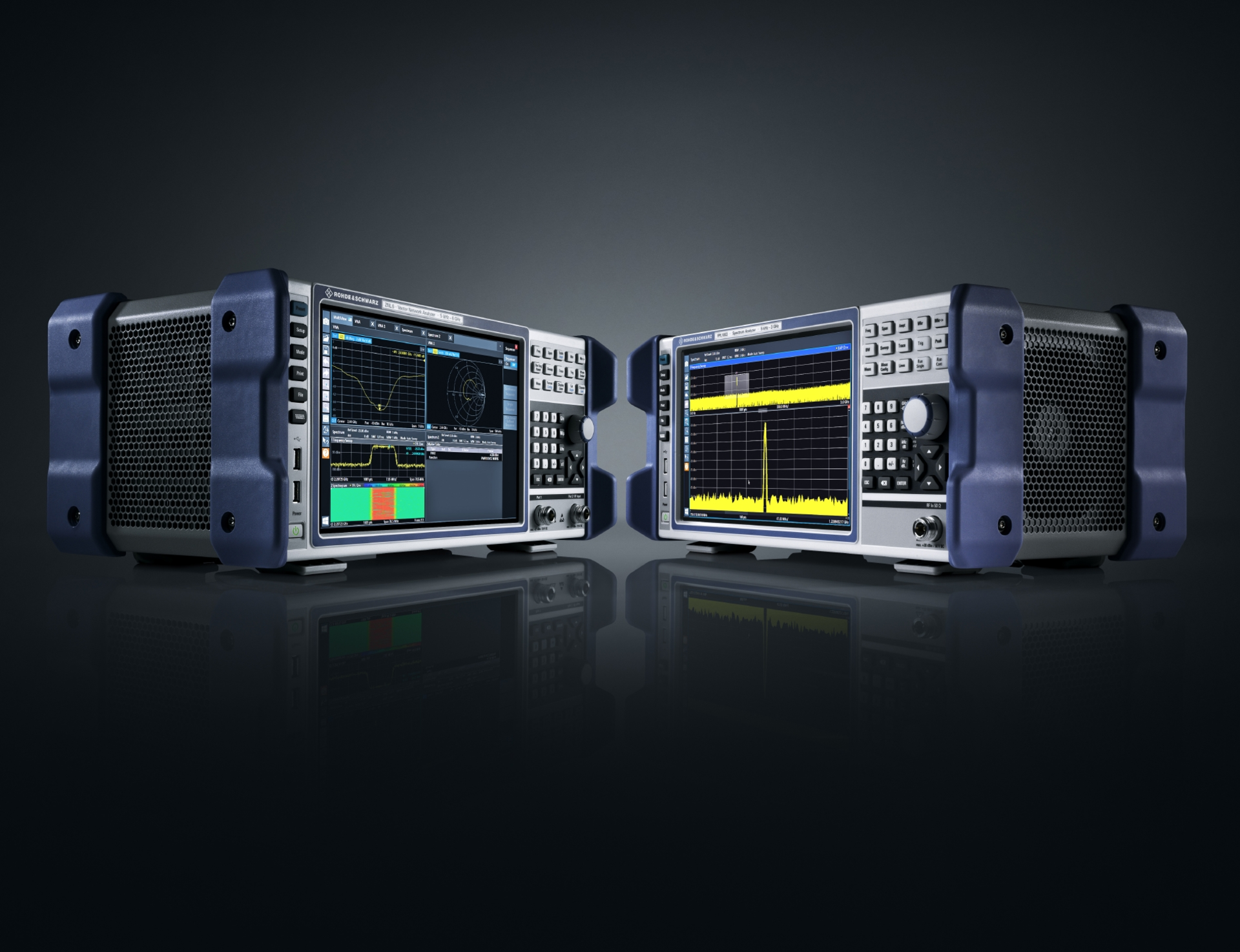

R&S VNA Spec An

R&S debuts vector network analyzer and spectrum analyzer

Oct. 10, 2017

Munich, Germany. Rohde & Schwarz has launched the R&S ZNL vector network analyzer and the R&S FPL1000 spectrum analyzer to offer flexible solutions for important RF measurements. Capabilities include the characterization of components such as antennas, attenuators, filters, and amplifiers as well as measurements on signal sources including spectral measurements, analog and digital signal demodulation, and accurate power measurements.

Instruments from the new family have a footprint of just 408 mm x 235 mm. This saves up to 60 % of space on the workbench compared with conventional solutions, the company reports. The instruments feature a 10.1″ WXGA touchscreen, providing a good overview of measurement details. The touchscreen allows users to readily set the center frequency and reference level and zoom the span or amplitude measurement range. Weighing 6 kg to 8 kg and featuring a carrying handle and optional battery, the instruments are fully portable and can be used wherever needed.

R&S ZNL: from a standalone network analyzer to a 3-in-1 allrounder

With frequency ranges from 5 kHz to 3 GHz or 6 GHz, the R&S ZNL is suited for various RF component measurement applications in industrial electronics and wireless communications. The R&S ZNL offers solid network analyzer performance with a dynamic range of up to 130 dB (typ.) and an output power range from -40 dBm to +3 dBm (typ.). The measurement speed is high—for instance, 16.7 ms (401 points, 100-kHz IF bandwidth, 200-MHz span, two-port calibration). Standard features include embedding/deembedding, fixture compensation, time-domain measurements, and support of automatic calibration units.

The R&S ZNL can be equipped with full spectrum-analyzer hardware. When combined with an R&S NRP power sensor, it turns into a power meter. In this way, the R&S ZNL becomes a true 3-in-1 allrounder that can handle continually changing measurement tasks, helping research and service labs to reduce investment costs.

R&S FPL1000: spectrum analyzer with versatile measurement functions

The R&S FPL1000 spectrum analyzer operates in the frequency range from 5 kHz to 3 GHz. It delivers solid RF performance with a typical phase noise of -108 dBc at 10-kHz offset (1-GHz carrier) and a displayed average noise level (DANL) of -167 dBm using the optional preamplifier. This performance combined with ease of use makes the R&S FPL1000 suitable for applications in the lab, production, and service.

The spectrum analyzer functionality of both the R&S ZNL and the R&S FPL1000 includes a wide range of spectral measurements such as channel power, adjacent-channel leakage ratio (ACLR), signal-to-noise ratio, spurious, harmonic distortions, third-order intercept point (TOI), and AM modulation depth. Versatile marker functions are also provided. With standard 10-MHz or optional 40-MHz analysis bandwidth, the instruments can analyze analog signals when equipped with the R&S FPL1-K7 option. Digital modulated signals can be characterized using the R&S VSE software and the R&S VSE-K70 option. The R&S FPL1 K30 option, in combination with an external noise source, turns both the R&S FPL1000 and the R&S ZNL into a noise-figure meter.

Rohde & Schwarz is presenting the R&S ZNL vector network analyzer and the R&S FPL1000 spectrum analyzer to the public for the first time at European Microwave Week 2017 in Nuremberg through October 12. The instruments are now available from Rohde & Schwarz and selected distribution channel partners.

www.rohde-schwarz.com/ad/press/analyzers
