Dtm110 C8

TDK’s class II, level VI external 110W rated power supplies have home, medical, and ITE safety certifications

Dec. 26, 2018

TDK Corporation (TSE 6762) announces the introduction of the TDK-Lambda medical and industrial certified DTM110-C8 Class II (no earth ground needed) external power supplies. This series meets the stringent DoE Level VI and EU Tier 2 v5 standards for efficiency and off-load power. The DTM110-C8 is certified to the medical IEC 60601-1 and industrial IEC 60950-1 standards, making it suitable for a variety of hospital and home healthcare applications, plus industrial test, measurement, and portable equipment.

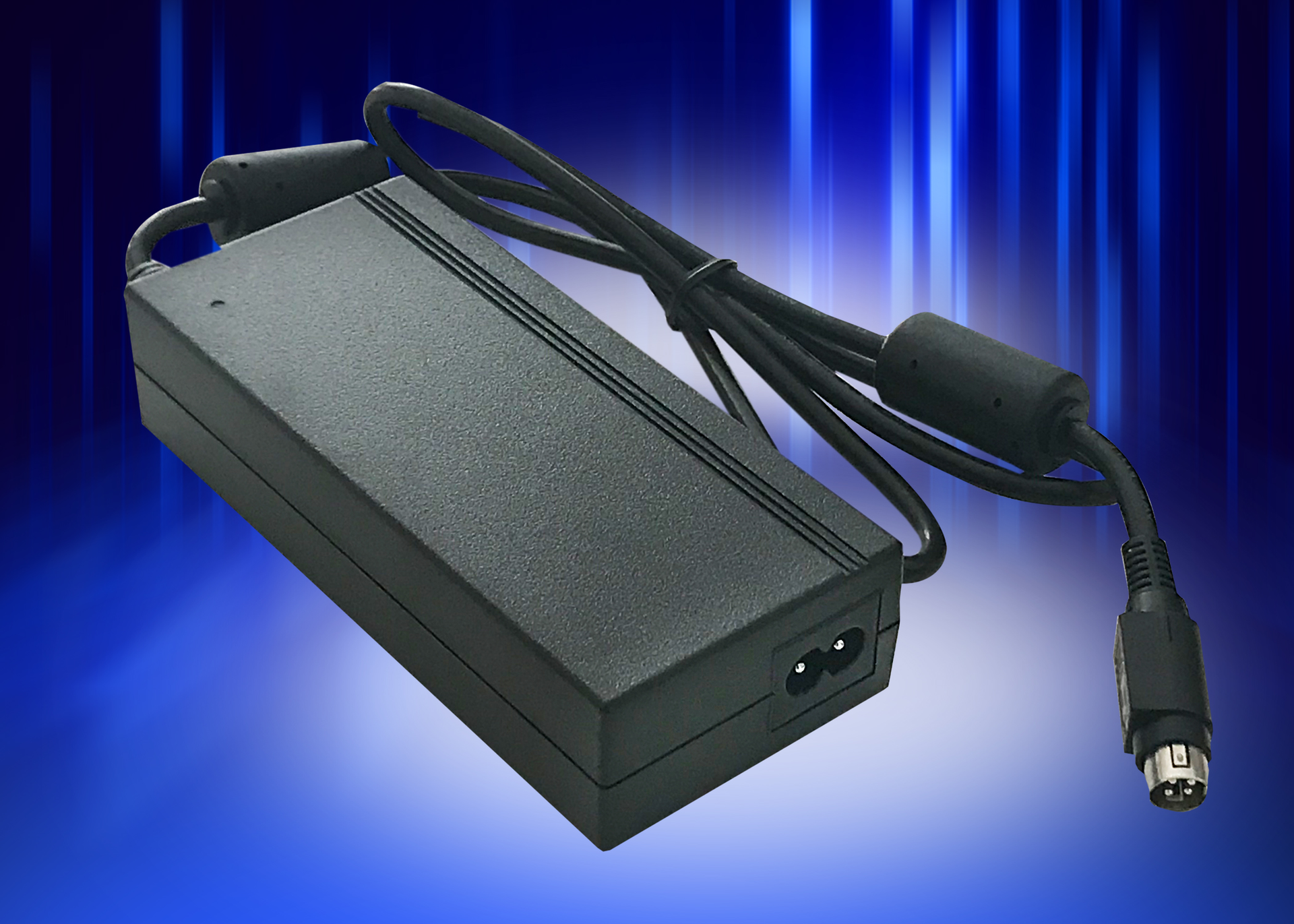

The DTM110-C8 is housed in a rugged, IP41 rated, vent-free enclosure measuring 63mm x 140mm x 33mm (W x L x H). AC is applied through the standard IEC 60320-C8 (2-prong) socket and the output DC cable is fitted with a 4-pin Power-DIN connector as standard, with other connector types available upon request. The adapters also feature over-voltage and over-current protection.

Accepting a 90 to 264VAC input, the 105 to 110W adapters are available with 12V, 15V, 19V, 24V, 28V, 36V and 48V outputs and can operate in ambient temperatures ranging from -20 to +60°C (derating linearly to 50% load from 40 to 60°C). In addition to satisfying DoE Level VI and EU Tier 2 v5 requirements with an average efficiency of greater than 89%, the power supplies have an off-load power consumption of less than 0.15W.

The DTM110-C8 series has been certified to IEC/ES/CSA/EN 60601-1, IEC 60601-1-11, IEC/UL/CSA/EN 60950-1 and carries the CE mark for the Low Voltage, EMC, and RoHS Directives. All models meet IEC 60601-1-2 Ed4:2014, EN55011-B, EN55032-B, FCC Part 15 Class B, FCC Part 18 Class B emissions and immunity standards. Input to ground isolation is 1,500Vac (1 x MoPP), input to output 4,000Vac (2 x MoPP) and the touch current is <100µA. All models are suitable for B and BF rated equipment with operation up to an altitude of 5,000m.

More information can be obtained at the following TDK-Lambda Americas website, http://www.us.tdk-lambda.com/lp/products/dt-c-series.htm, or by calling 800-LAMBDA-4.
