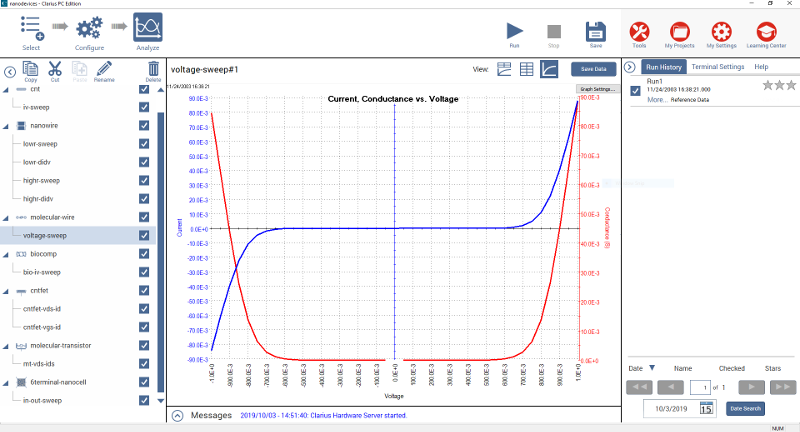

Keithley 4200 A Voltage Sweep

Keithley SMU modules address low-current, high-capacitance test challenges

Oct. 29, 2019

BEAVERTON, OR. Tektronix Inc. has announced the availability of two new source-measure unit (SMU) modules for the Keithley 4200A-SCS parameter analyzer that can perform low-current measurements even in the presence of high load capacitance due to long cables and complex test setups. Among the notable test applications facing this challenge are LCD display manufacturing and nano FET device testing on a chuck.

The new 4201-SMU and 4211-SMU are designed specifically for test setups with long cables, switch matrices, gate contacts to the chuck, and other fixturing. Such test setups, which are required in a number of low-current measurement applications, can increase the capacitance seen at the output of the SMU, even though the device under test itself has very low capacitance. When the test connection capacitance is too high, the resulting low current measurements can become unstable.

To address these challenges, the new modules can source voltage and measure current with longer cables or more connection capacitance than possible using traditional SMUs. This saves researchers and manufacturing test engineers the time and cost that would otherwise be spent troubleshooting and reconfiguring test setups.

“High load capacitance resulting from elaborate test setups is a growing problem as current levels are reduced to save energy, as is the case with testing the large LCD panels that ultimately end up in smartphones or tablet computers,” said Peter Griffiths, general manager, Systems & Software, Keithley division of Tektronix. “Our new modules excel at making stable low-current measurements and will immediately benefit many of our existing and future customers.”

At the lowest supported current measurement range, the 4201-SMU and 4211-SMU can source into and measure a system that is 1,000 times more capacitive than what’s possible today, the company said. For example, if the current level is between 1 to 100 pA, the new Keithley modules can be stable with as much as 1 µF of load capacitance. In contrast, the maximum load capacitance competitive units can tolerate before measurement stability degrades is just 1,000 pF, or 1,000 times worse, the company reported.

The 4201-SMU and 4211-SMU can be ordered pre-configured with a 4200A-SCS for a full parameter analysis solution or as a field upgrade for existing units. The upgrade can be easily accomplished on site without the need to send the unit to a service center, potentially saving weeks of downtime.
