    Eurotec caseframe family of electronic chassis and enclosures for 3U and 6U boards introduced by Verotec

    Jan. 26, 2021
    Chassis and enclosures enable users to build application-specific designs, reduce time to market, and help minimize non-recurring engineering costs.

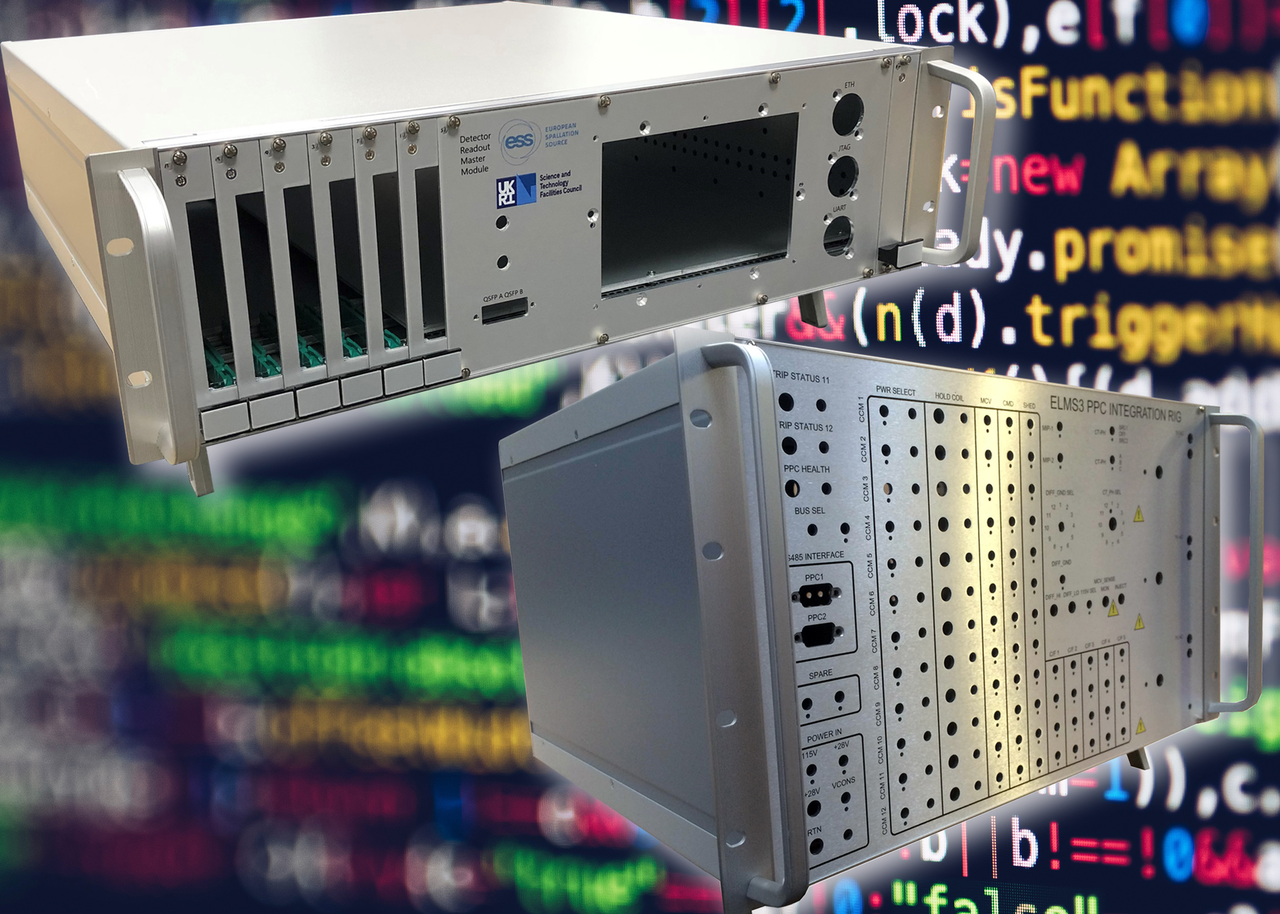

    NORTH HAVEN, Conn. – Verotec Inc. in North Haven, Conn., is introducing the Eurotec caseframe family of electronic chassis for standard 3U and 6U printed circuit boards or modules that need a desktop, 19-inch rackmount, or portable enclosure.

    Standard depths are 240, 360 and 480 millimeters, and backplane or DIN41612 connector rear extrusions can be specified. The core design is finished with front trims and latching feet for desktop instrumentation use.

    The chassis is fitted with standard 19-inch earpieces for rack mounting and the portable units have a locking carry handle. The top and bottom covers can be removed for system building and servicing.

    Three thermal-management options are available. For low power applications, the 3U and 6U units have unventilated top and bottom covers. 4U and 7U versions are fitted with additional half-U high ventilated covers that offer enhanced convection cooling.

    Related: 3U-high electronics rack cases to mount subsystems and assemblies in 19-inch enclosures offered by Verotec

    High-power applications can use the 5U and 8U versions, which are fitted with a half-U ventilated top cover and a 1 1/2U bottom cover with a front filter unit that accepts a fan tray for forced air cooling. EMC screening kits that provide enhanced attenuation levels are available.

    Other options for these enclosures include vented and fan rear panels as an alternative to using the bottom fan tray version. The use of standard KM6 subrack components means that Eurotec is fully compatible with KM6-II card guides, front panels, plug-in units and accessories.

    These elements enable users to build application-specific designs from standard components, reduce time to market, and help minimize non-recurring engineering costs.

    For more information contact Verotec online at www.verotec.co.uk.

    LATEST IN COMPUTERS
    Computers

    FACE conformance for RTOS software offered by DDC-I

    Jan 26th, 2021
    Sensors

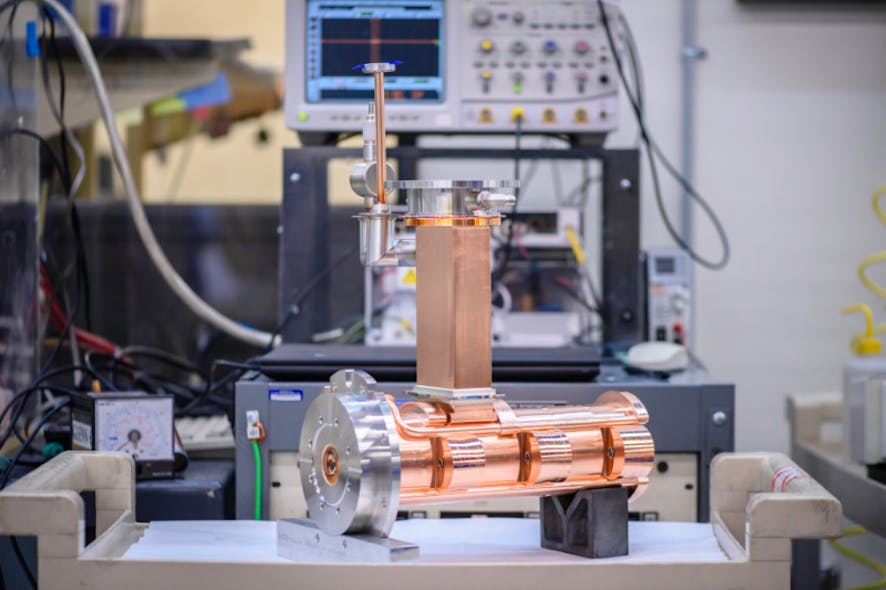

    Wanted: rugged mobile linear accelerator for bomb disposal

    John KellerJan 25th, 2021
    Power

    Hypersonics illustrate supply chain vulnerabilities

    Jan 25th, 2021
    Communications

    Northrop to research voice and data communications payloads

    John KellerJan 25th, 2021
    Trusted Computing

    DOD must determine threat from quantum computers

    Jan 25th, 2021
    Board ProductsCommunicationsDisplaysElectro-OpticsEmbedded ComputersInterconnect TechnologyMaterialsPower Control & ConditioningRF & MicrowaveSoftwareTest & MeasurementTrusted ComputingView All Companies >MORE IN COMPUTERS
    Sponsored

    Gen 3 RFSoC 8-Channel A/D & D/A Module for SWaP

    Measuring only 2.5 by 4 inches, the QuartzXM Model 6003 includes the circuitry needed to maximize the performance of the Gen 3RFSoC. The Model 6003 can be used as a QuartzXM module, SOSA aligned 3U VPX, 3U VPX, PCIe and a SFF Rugged Enclosure.Jan 12th, 2021
    Sensors

    Boeing asked to build more KC-46 aircraft and avionics

    Just last week the Air Force ordered 12 KC-46 tanker aircraft as part of the KC-46 lot six program under terms of a $1.7 billion order.John KellerJan 22nd, 2021
    Computers

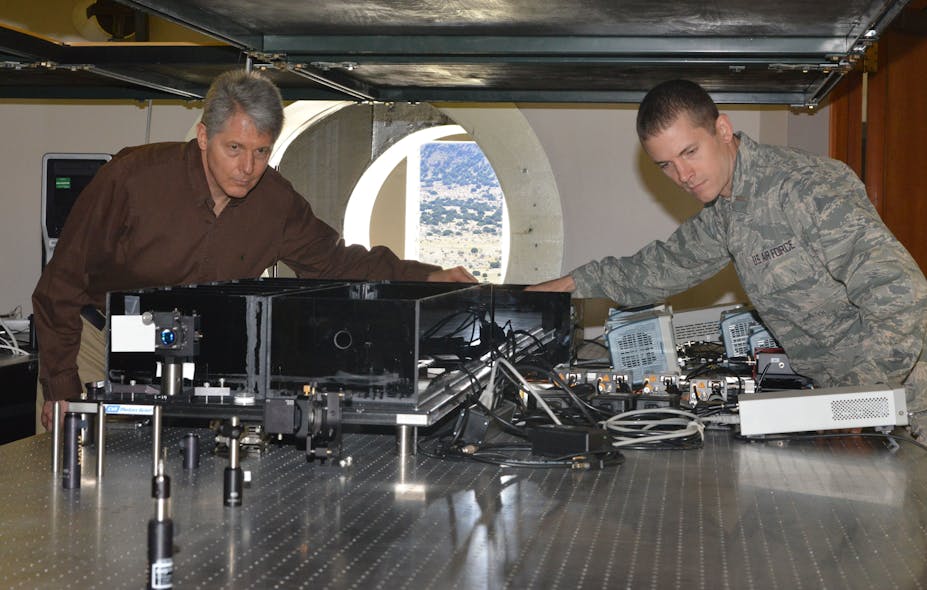

    Inside the Air Force Research Laboratory’s Quantum Lab

    Researchers will test quantum computing at an upcoming military exercise with Canada, the United Kingdom, Australia, and New Zealand.Jan 22nd, 2021
    RF/Analog

    Wanted: multi-aperture EW antennas for surface warships

    Given limited shipboard topside space, the Navy wants to make electronic support and electronic attack functions available from the same aperture.John KellerJan 21st, 2021
    Computers

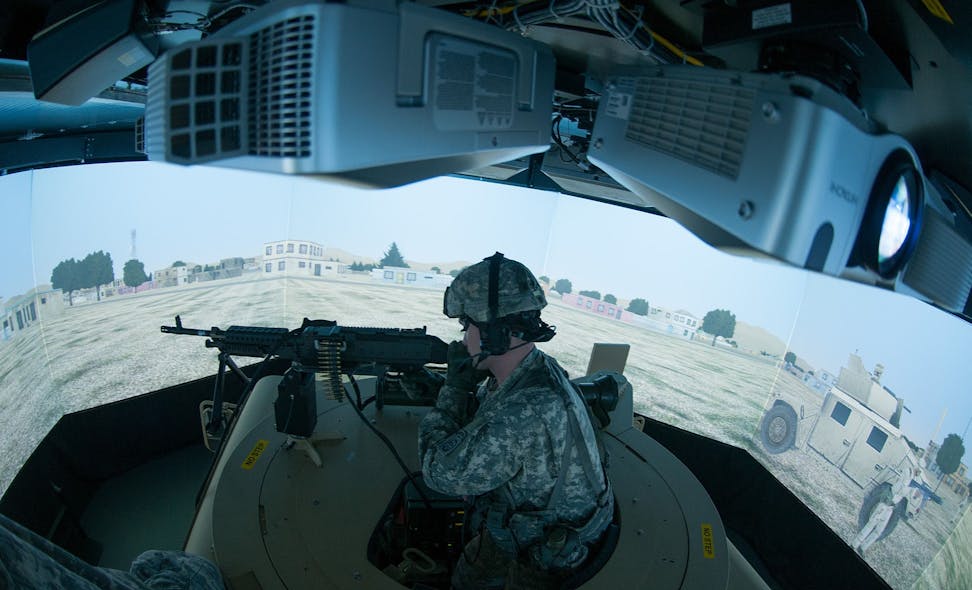

    Wanted: simulation technology for unmanned ground vehicles
