TDK offers multilayer chip beads with high rated currents

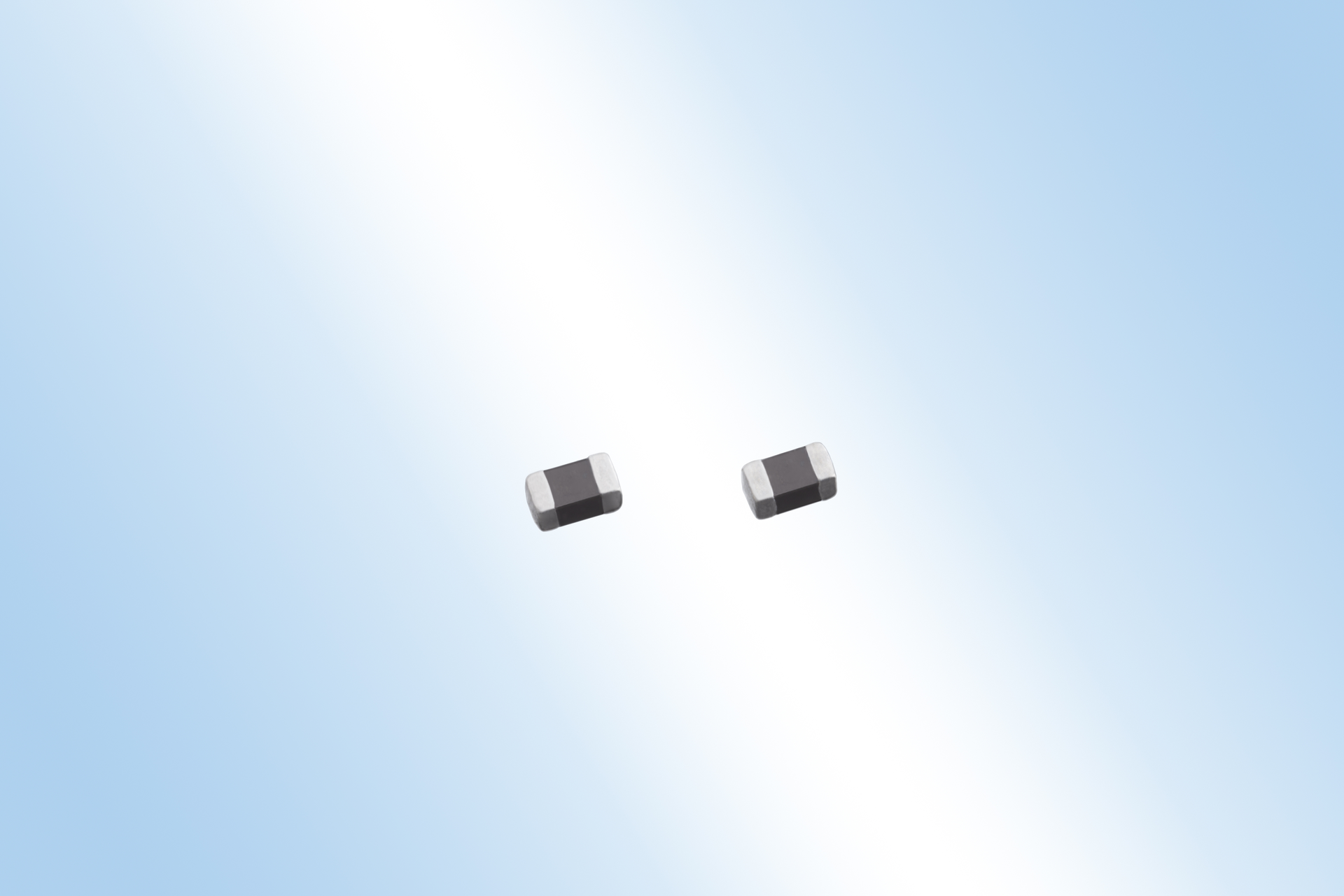

TDK Corp. has developed the new MPZ0603-H Series multilayer chip beads for power lines in an IEC 0603 package (EIA 0201) that feature twice the rated current and about half the DC resistance of the existing MPZ0603-C Series. Thanks to a newly developed technology for the internal electrodes, TDK was able to reduce the DC resistance to as low as 36 mΩ, thus increasing the rated current to as high as 1,900 mA.

The MPZ0603-H Series offers high impedance values ranging from 22 Ω to 120 Ω at 100 MHz. The new chip beads measure in with a miniature footprint of 0.6 mm x 0.3 mm and a low insertion height of just 0.3 mm. With their compact dimensions and electrical specifications, the ferrite beads are suited for a wide spectrum of noise-suppression measures in the IC power-supply lines of smartphones, audio players, PCs, and other devices.

As the multifunctionality of portable devices such as smartphones continues to grow, high current ratings are becoming an increasingly important factor for components in the IC power-supply lines. Thanks to their low DC resistance the MPZ0603-H chip beads not only offer a high rated current, but they also help lower the power consumption of devices.

Key data

Type	Impedance at 100 MHz (Ω,±25%)	Max. DC resistance (mΩ)	Max. rated current (mA)
MPZ0603S220H	22	36	1,900
MPZ0603S330H	33	50	1,600
MPZ0603S800H	80	95	1,200
MPZ0603S121H	120	130	1,000

https://product.tdk.com/info/en/catalog/datasheets/beads_commercial_power_mpz0603-h_en.pdf
