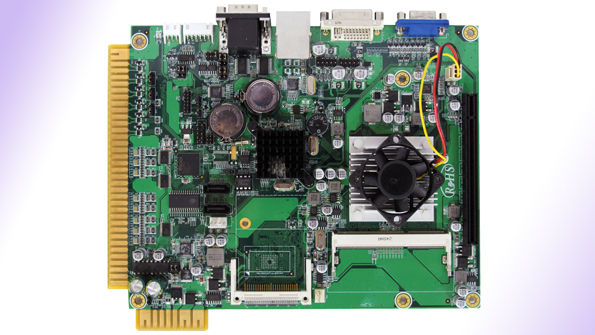

The MB-63020 from WIN Enterprises is an AMD G-Series processor-powered board designed to provide gaming equipment manufacturers with price performance in an entry-level product. The SBC offers onboard 3D graphics performance with support for DirectX 11 and Open GL 4, independent dual display by VGA + DVI-D, and near Mini-ITX form factor with 4x PCIe expansion slot. Full bit stream decoding of H.264/MPEG4 AVC, VC-1, DivX, Xvid, MPEG2 and Blu-ray 3D is supported. The board also features a Golden fingers 72-pin connector, SATA connectors with CF card slot or optional onboard SSD storage, and four COMs with RS-232, RS-485 and cctalk pin headers selectable. Power is supplied via 5 Vdc and 12 Vdc inputs from 20-pin Golden fingers.
