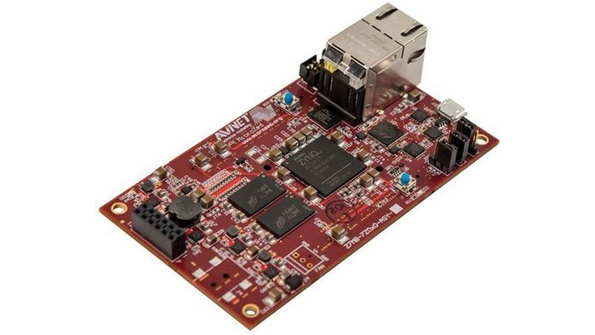

A system-on-module (SOM) introduced by Avnet Electronics Marketing boosts programmable logic threefold, enabling engineers to run more complex applications for models in evaluation and prototyping, embedded SOM, embedded vision, test and measurement, motor control, and software-defined radio. The MicroZed 7020 integrates Xilinx’s Zynq-7000 XC7Z020-1CLG400C all-programmable system-on-a-chip (SoC). The Zynq-7000 device includes 85,000 logic ells, 560-kbyte extensible block RAM, and 220 programmable DSP slices. These differentiate the MicroZed 7020 from the original MicroZed Evaluation Kit, which contains the Zynq-7000 Z-7010 SoC. The SOM also includes 1-Gbyte DDR3 SDRAM, 128 Mbytes of QSPI flash, Micro SD card interface, 10/100/1000 Ethernet, USB 2.0, USB-UART, user I/O via dual board-to-board connectors, 2x6 Digilent Pmod-compatible interface (with 8 PS MIO connections), Xilinx PC4 JTAG configuration port, and 33.33-MHz oscillator.
