    Putting Trust In An FPGA

    Feb. 20, 2014
    Microsemi is putting its SmartFusion 2 in between the boot ROM (usually a serial flash device) and the host processor to provide a more robust, secure boot environment.
    William G. Wong

    Microsemi is putting its SmartFusion 2 (see Secure Gen 2 Cortex-M3 Flash FPGA Prevents Counterfeiting) in between the boot ROM (usually an SPI flash device) and the host processor to provide a more robust, secure boot environment (Fig. 1). The flash memory contains encrypted code that the SmartFusion system can verify and decode. The host runs a boot program that verifies system operation and then continues the boot process.

    Electronicdesign Com Sites Electronicdesign com Files Uploads 2014 02 103491 Fig1sm
    Figure 1. SmartFusion 2 sits between an SPI flash with encrypted code and the host processor.

    The SmartFusion platform is a flash-based FPGA built around an ARM Cortex-M3 microprocessor (see FPGA Combines Hard-Core Cortex-M3 And Analog Peripherals). The SmartFusion 2 (Fig. 2) concentrates on the digital side and drops the analog engine found still available in the first version.

    Electronicdesign Com Sites Electronicdesign com Files Uploads 2014 02 103491 Fig2sm Smart Fusion
    Figure 2. SmartFusion 2 incorporates a secure, ARM Cortex-M3 to complement the FPGA fabric.

    Related Articles

    • Secure Gen 2 Cortex-M3 Flash FPGA Prevents Counterfeiting
    • FPGA Combines Hard-Core Cortex-M3 And Analog Peripherals
    • Innovative Integration Mixes Micros WIth FPGAs
    • Climb On Board Next-Generation FPGAs

    The SmartFusion 2's secure boot support does not require the FPGA support allowing designers to provide additional functionality

    The full boot process (Fig. 3) is rather extensive and it verifies all aspects of the system from the SmartFusion chip itself to the boot code and the host. The end result of a successful boot is a host running a secure kernel that can then load an operating system and applications that have also been verified. The secure host boot application will have the keys necessary to do this.

    Electronicdesign Com Sites Electronicdesign com Files Uploads 2014 02 103491 Fig3sm

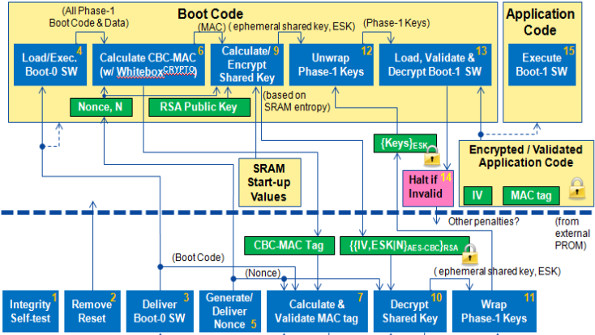

    Figure 3. The complete boot process incorporates a range of keys, encrypted and decrypted code and handshaking between the host and the SmartFusion system.

    The multistep process is necessary to address the various areas of attack. The chip itself is tamper-resistant and it has the secure keys to get everything started. The conventional SPI flash contains encrypted code that cannot be subverted. The host will eventually be running verified code that can then determine whether the subsequent operating system is authentic before running it. A secure operating system can then verify and load applications in a similar fashion. This might even make use of secure, encrypted disk storage.

    Without the root trust, there is no way to protect the system. SmartFusion 2 uses differential power analysis (DPA) resistant anti-tamper measures licensed from Cryptography Research Incorporated (CRI).

    There is a new SmartFusion 2 reference design that secures each stage of the boot process. It works with Microsemi's WhiteboxCRYPTO security product. This enables transport of symmetric encryption key in a plain text environment through complex algebraic decomposition of the crypto key and strong obfuscation. Microsemi also provides a graphical user interface for encrypting the developer's application code for subsequent programming of the SPI flash as well as the decryption in the host processor.
