NTC Inrush Current Limiting Thermistors

SURGE-GARD series devices, available from Mouser Electronics, are capable of handling high steady-state currents to 36A and input energy to 250 J.

Aug. 15, 2014

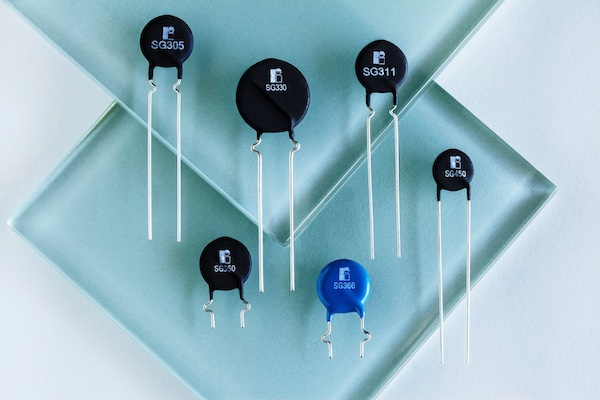

The Ametherm SURGE-GARD series devices, available from Mouser Electronics, are capable of handling high steady-state currents to 36 A and input energy to 250 J. Available in multiple leaded package options with maximum diameters from 7.6 mm to 31.75 mm, the components offer resistance at +25 °C (R25) from 0.4 Ω to 220 Ω with tolerances down to ±10%, maximum operating voltage to 265 VRMS, and beta from 3000 °K to 3965 °K.

Constructed of specially formulated metal oxide ceramic materials, RoHS-2- and REACH-compliant SURGE-GARD thermistors are optimized for a wide variety of applications that require inrush current limiting to reduce noise and circuit failure - including switching power supplies, AC motors, motor drives, audio amplifiers, and battery chargers. In these applications, the devices lower rectifier costs by reducing the required peak forward-surge-current rating.

Samples and production quantities of the SURGE-GARD line are available now, with lead times of five weeks for large orders. Pricing for U.S. delivery varies by size, and ranges from $0.30 to $0.99 per piece.
