Magna-Power delivers 1-MW water-cooled DC electronic load to U.S. Navy

Aug. 8, 2018

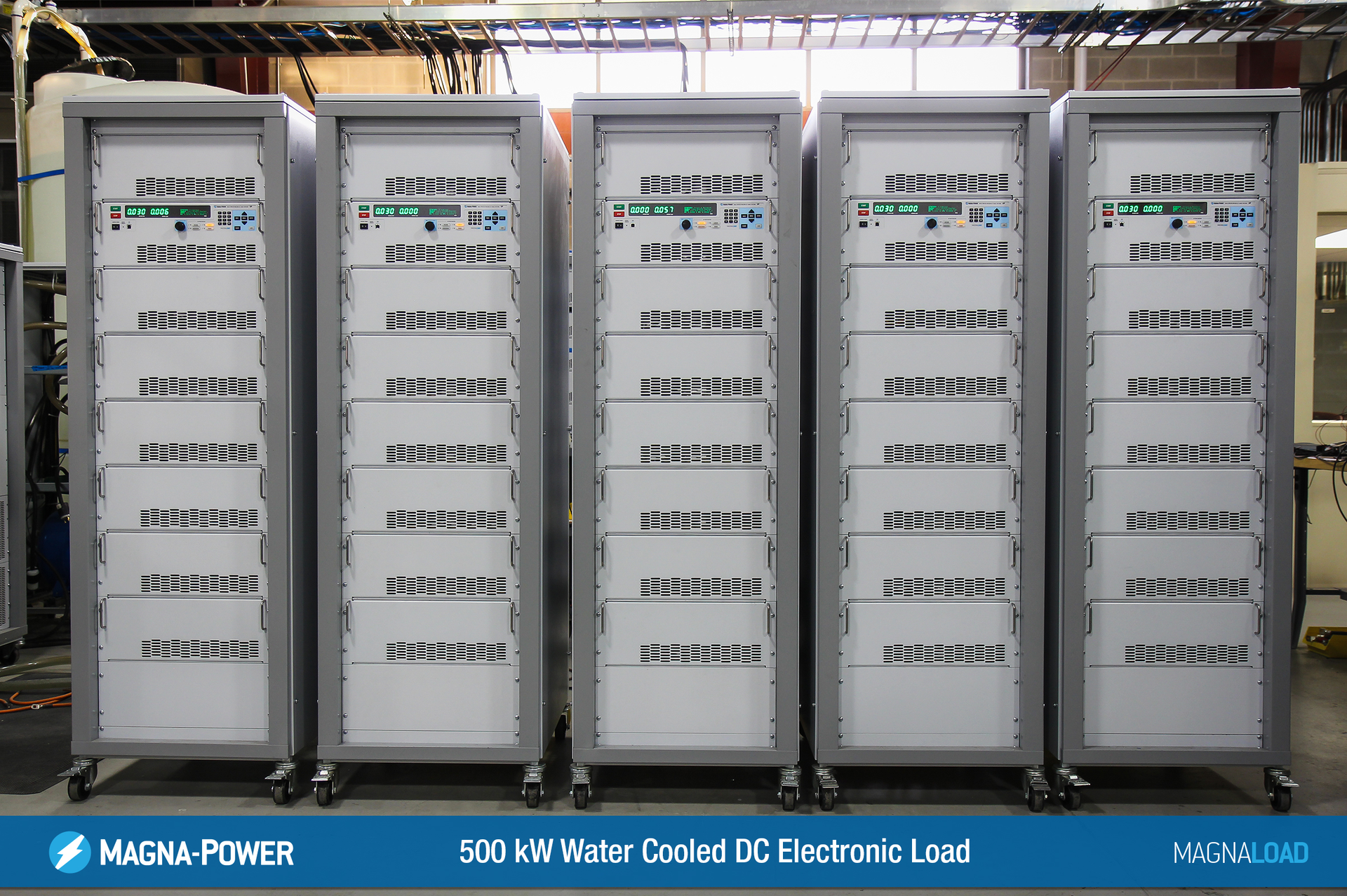

Flemington, NJ. Magna-Power Electronics announced the delivery of a 1-MW water-cooled DC electronic load to the U.S. Navy, which will use it to research, develop, test, and evaluate the operation of energy-storage modules (ESMs) in a shipboard environment. To meet this requirement, Magna-Power delivered ten of its standard 100-kW WRx Series MagnaLOAD DC electronic loads, configured in two master-slave sets of 500 kW.

The 500-kW DC electronic load systems will be part of a real-time hardware-in-the-loop (HIL) simulator, which will drive the MagnaLOADs using a high-speed analog input. A digital simulator will be used in place of the actual electric shipboard equipment to conduct model-based simulation of the shipboard electric load. The MagnaLOADs will mimic the discharge profile of the ESM, depending on the components under test and the model being simulated.

Given the nature of these tests, which can last for days, Magna-Power designed its MagnaLOAD products for continuous full-power operation at a 50°C ambient operating temperature and cooling-water temperature up to 25°C. Magna-Power designed and manufactured microchannel water-cooled heatsinks, allowing the company deliver power dissipation of 12.5 kW per 4U. In addition, Magna-Power’s new patented Active Resistance Technology combines a switched binary matrix of resistances with MOSFETs to deliver features and performance consistent with traditional electronic loads, at a fraction of the price. The product features a wide operating range, allowing full power to be achieved over the range 50% to 100% rated voltage in its high-power range. A separate low-power range enables high-current operation at lower voltages.

“While a significant engineering undertaking for the company, the result is a brand new product line, three new product series, and a new robust digital-control scheme that will be far-reaching,” said Ira J. Pitel, Ph.D., president of Magna-Power Electronics. “As a company, we are very proud to support this program and greatly value the U.S. Navy’s support and cooperation to allow Magna-Power to realize this system.”

This contract was proving ground for Magna-Power’s new distributed DSP digital control platform, MagnaLINK, which paves the way for the company’s future products. This new control platform, available in the MagnaLOAD product line, provides simultaneous high-speed high-reliability control and measurement aggregation of 40 modules, while operating in a high-EMI environment. Furthermore, MagnaLINK provides simultaneous master-slave firmware upgrade, with new-product configuration detection and automatic settings reconfiguration.

When fully developed, the ESMs are intended to integrate into the ship’s electrical system and dynamically act as a power source or power sink, depending on the electrical needs of the ship. The MagnaLOAD DC electronic load product line is available now, spanning many air- and water-cooled models across three product series.
