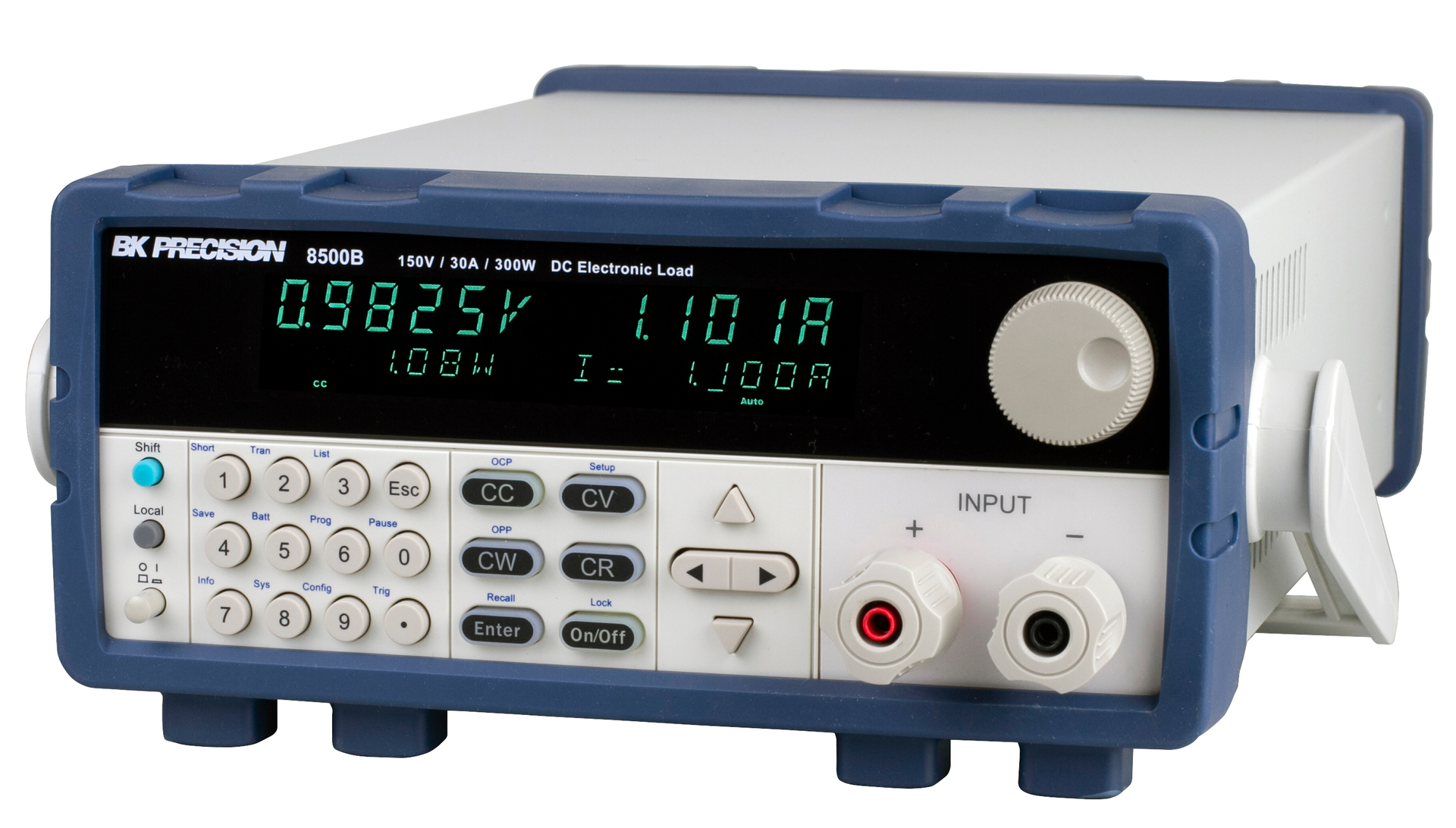

These new loads are a cost-effective alternative to B&K Precision's 8600 Series which come with a similar feature set. For system integrators, the 8500B series offers backward compatibility with the legacy 8500 series protocol as well as support of industry-standard SCPI commands. Equipped for a variety of benchtop and production line applications, the 8500B series is suitable for testing DC-DC converters, batteries, battery chargers, and photovoltaic arrays
Key Features
- Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), Constant Power (CW) operation
- List mode, transient operation, automatic test mode, battery test function, adjustable slew rate
- Transient mode up to 10 kHz in CC mode
- 16-bit voltage and current measurement system providing up to 0.1 mV / 0.1 mA of resolution
- Full OVP/OCP/OPP/OTP including local and remote reverse voltage (LRV/RRV) protection
- Built-battery test function
- Flexible triggering options: front panel, external input, timer, or bus
- Multi-type input terminals for banana jack or spade type connectors
These loads also include PC software for front panel emulation and generating test sequences and are compatible with B&K Precision's battery test software for discharge tests.
The 8500B series consists of four models each in a 2U (half-rack) form factor with a starting price of $910 and backed by a 3-year standard warranty.
For additional technical specifications, accessories, and support documents, visit:https://www.bkprecision.com/products/dc-electronic-loads/8500B-8500b-300-w-programmable-dc-electronic-load.html
