Inspectis 5.0 release offers new overlay features
SOLNA, SWEDEN. INSPECTIS AB has announced the release of version 5.0 of Inspectis software, offering a comprehensive collection of new overlay features including a built-in DXF creator and an editor for producing scaled overlay graticules.
Some of the new features of 5.0 include a DXF editor and overlay feature that allows you to create a DXF file from your object by optical edge detection. You can open an existing DXF CAD file, edit, draw patterns or shapes, and add text and overlays on the live image. You can save the image in DXF or PNG format and display a digital graticule on the live image.
A live image can be overlaid on a reference picture with a timer-controlled interval display. It’s an efficient tool for identifying missing components, wrong polarity, misplacements, and other defects on assembled PCBs.
INSPECTIS software is easy-to-use live image view, capture, utility, and metrology software, specially designed for the full range of Inspectis HD, Full HD, 4K, and USB 3.0 digital microscopes. Available in four functionality levels—Basic, Pro, ProX, and Overlay—it provides an array of tools for calibration of device magnification, live image overlays and comparison, focus stacking, annotations, and reporting.

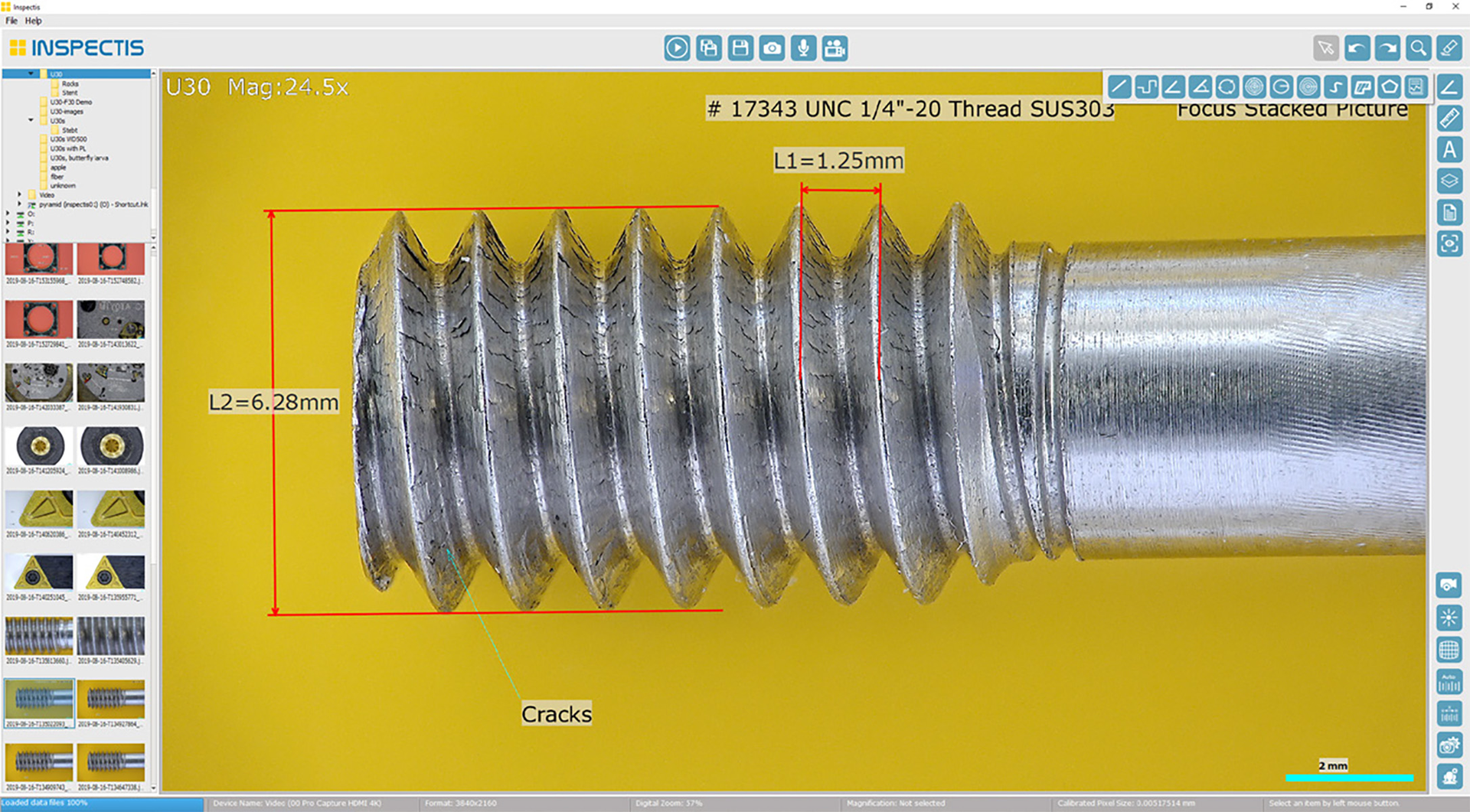

Its intuitive GUI features icon-based function tools including measurement tools; crosshair, grid, and graticule; compare and image overlay; autocalibration; annotation and count; interval overlay with timer; auto and manual focus stacking; and memory presets. INSPECTIS software reduces time spent on capture, analysis, measurements, and documentation of inspection objects. Results can be exported or printed as certificates and reports with custom templates. Other features include the following:
· Focus Stacking—Create images with extended depth of focus by taking 10 to 25 images at different focus depths to create one ultra-sharp image.
· Compare Windows—Compare a live image to a reference picture or compare two to four still images to each other.
· Measurement Data—A Data table is generated automatically and linked to the measured image.
· Reporting—Report and certificate generator with user-defined templates enable measurement data and comments to be automatically imported with selected images.
