Another Dose of Augmented/Virtual Reality at CES 2018

Jan. 9, 2018
AR/VR developments on display at this year’s CES go beyond the new hardware, offering up intriguing solutions- and applications-oriented advances such as healthcare training and 3D messaging.

Augmented reality (AR) and virtual reality (VR) fit in with the glitz and glamour of the Consumer Electronics Show (CES). Evidence of it can be seen with all of the AR and VR head-mounted displays (HMDs) popping up throughout the space. The market has changed significantly from hiccups like Google Glass, which has actually been revived for industrial use. The challenge is that AR and VR cover a wide range of systems and applications.

1. Pico Interactive’s Eagle headset features over-ear, noise-cancelling headphones and a removable high-definition OLED display band.

One area is the virtual home theater. Pico Interactive’s “Eagle” is a lightweight mobile headset featuring over-ear, noise-cancelling headphones and a high-definition OLED display band (Fig. 1). The removable OLED microdisplay, developed by Kopin, measures 0.49 in. and has 720p resolution. It provides the equivalent of an 80-in. screen viewed from 10 feet. The advantage of the system is that it lets users maintain situational awareness of their surroundings.

Apple and Google released AR software development kits (SDKs) for their platforms. Microsoft has also been pushing its Windows Mixed Reality based on technology developed for its Hololens. A number of mixed-reality headsets support this software framework, including devices from HP, Dell, Acer, and Samsung. Samsung's HMD Odyssey (Fig. 2) weighs in at 1.4 lb., including AKG headphones. The AMOLED displays have 2880- by 1600-pixel resolution. Among its features are a 110-deg. field of view and a 90-frame/s refresh rate.

2. The HMD Odyssey from Samsung works with Microsoft’s Windows Mixed Reality framework.

Magic Leap’s Leap One (Fig. 3) AR glasses use a light field display. It’s designed to be comfortable for longterm wear. Included are a controller and battery pack that can be worn on a belt.

3. Magic Leap’s Leap One is designed for long-term wear.

Another new AR device at CES comes from ThirdEye. The ThirdEye X1Smart Glasses (Fig. 4) provides the equivalent of a 90-in. screen at 10 feet. The display has 720p resolution with a 40-deg. field of view. The glasses incorporate a 13-Mpixel camera that can record 4k2k at 30 frames/s, 1080p at 60 frames/s, and 720p at 120 frames/s.

4. The X1 Smart Glasses developed by ThirdEye are capable of switching between AR and VR mode.

The system supports BlueTooth 4.1 and Wi-Fi 802.a/b/g/n/ac. It also has a USB 3 Type-C port. Hot-swappable batteries provide eight hours of operating time. The ThirdEye AR Software delivers an enterprise AR platform with a “See What I See” application. The user controls viewing with head motion for a hands-free operation. Check out this video for more on the software:

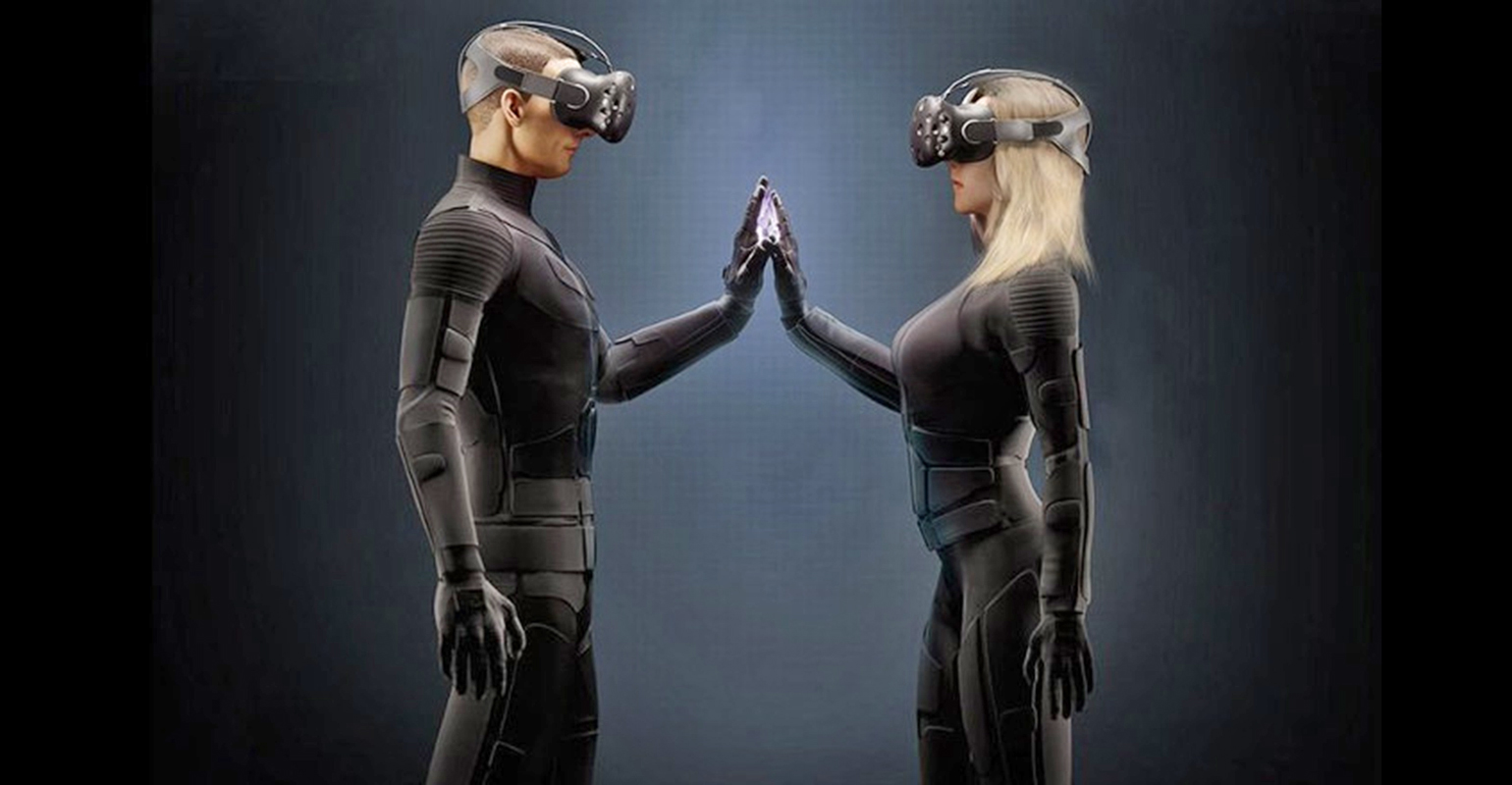

Gaming is one arena in which VR glasses can provide an immersive video environment, but Teslasuit wants to take virtual reality to the next level. The Teslasuit (Fig. 5) is a full-body, haptic environment. The suit has 46 haptic points that can provide different feedback to the wearer, including weight simulation. It even maintains limited climate control that can heat or cool the body from 58 to 104°F.

5. The Teslasuit incorporates 46 haptic points that can provide different feedback to the wearer, such as weight simulation.

The suit also has TENS (Transcutaneous Electrical Neural, or Nerve, Stimulation) and EMS (Electrical Muscle Stimulation) support. Fourteen motion capture sensors provide feedback to gaming software, meaning that many controller features are essentially built-in. This allows the suit to be used for motion-capture applications as well. The sensors and feedback mechanisms are controlled by an on-board processor.

6. SimforHealth uses VR to provide a simulated clinic environment.

A lot of AR and VR devices at CES will not be there to highlight the devices; rather, they will be utilized as part of solutions from simulating automotive experiences to controlling drones. SimforHealth will use HTV VIVE to demonstrate how virtual-reality MedicActiv can be applied in healthcare training (Fig. 6). The virtual clinical case was developed in partnership with Stanford Medicine to train students and healthcare professionals. Tools can create a clinical case using a virtual patient’s medical record, doctor/patient conversations, and the different diagnostic and therapeutic decision options.

7. With Snaappy, an AR app for smartphones, users can record geo-specific messages complete with animated AR characters.

AR/VR solutions and applications like SimforHealth may actually be more interesting than the new hardware at CES. Take Snaappy, for example (Fig. 7). Its application, termed a GEO AR message application, lets users create 3D AR messages. It provides a gallery of 3D AR characters that can be added to the messages. The app is available for Android and iOS platforms.
