Beaverton, OR. Tektronix announced that it has expanded its lineup of PAM4 test solutions to include comprehensive 400G electrical compliance testing for OIF-CEI-56G VSR/MR/LR PAM4 standards. The new 400G-TXE software package runs on high-performance Tektronix DPO70000SX real-time oscilloscopes; a lineup of models that go up to 70 GHz in bandwidth. The automated turnkey solution performs PAM4 compliance test sweeps in a single pass for shorter test times, more reliable and repeatable results, and greater ease of use.
The use of PAM4 encoding doubles the data rate of serial data channels compared to NRZ (non-return to zero). But as a complex modulation scheme it also presents a number of major test and measurement challenges. Many of the measurement specs for PAM4 are still in flux, making it difficult to stay current with the latest measurement techniques being formalized by the standards. The time required to complete complex test procedures can be a significant challenge along with the need for reliable results that can be correlated across test systems.“By automating the PAM4 testing on our DPO70000SX oscilloscopes, we are delivering

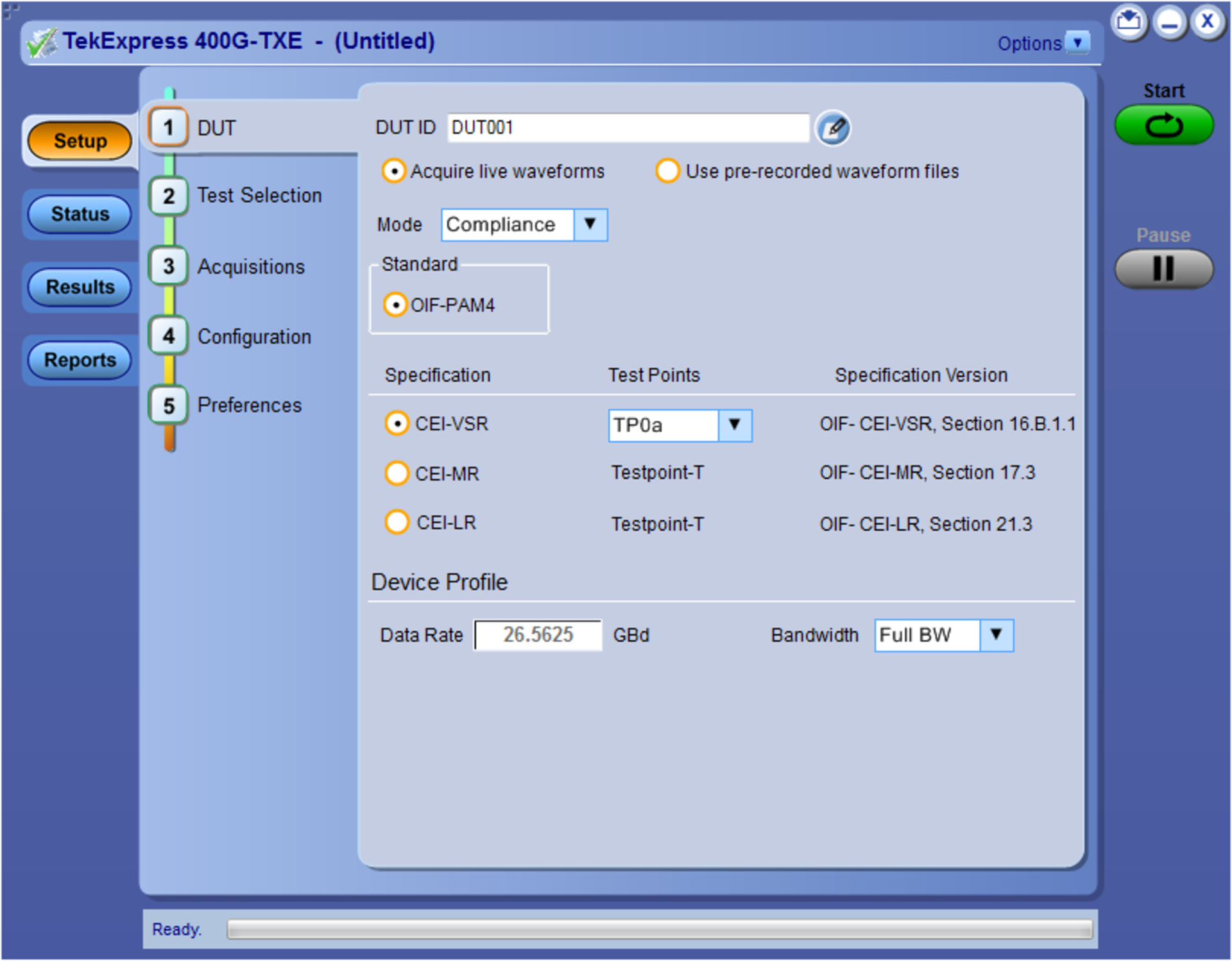

The Tektronix 400G package allows users to evaluate electrical PAM4 signals to specification-mandated limits, and offers full OIF-CEI spec-level compliance tests. The solution includes digital clock recovery capabilities that provide trustworthy measurement results under all conditions, including signals impaired with ISI jitter or other impairments. Tektronix 400G-TXE compliance package performs standard required test sweeps with just one application, which results in shorter test times as well as more reliable and repeatable results.
Beyond compliance testing, Tektronix also provides PAM4 analysis and debug software solutions for both real-time and equivalent-time oscilloscopes to support designers with insights needed to fully evaluate failing conditions such as BER and eye height and width.
The 400G-TXE solution runs on high-performance DPO70000SX 70-GHz, 59-GHz, and 50-GHz real-time oscilloscope models that deliver low noise and measurement accuracy. High-speed standards such as the OIF- CEI require oscilloscope bandwidths currently provided by the DPO70000SX Series.
For more information see the 400G-TXE datasheet: http://www.tek.com/datasheet/oif-cei-56g-vsr-oif-cei-56g-mr-oif-cei-56g-lr-datasheet.
