Gain Block Delivers 47dBm OIP3 Linearity with Low Noise

Nov. 16, 2016
Linear Technology announced the LTC6433-15, a wideband 15dB gain block amplifier offering outstanding linearity of 47dBm OIP3 and 3.22dB noise figure at 150MHz.

Linear Technology announced the LTC6433-15, a wideband 15dB gain block amplifier offering outstanding linearity of 47dBm OIP3 (output third order intercept) and 3.22dB noise figure at 150MHz. The amplifier has excellent OP1dB (output 1dB compression point) of 19.2dBm. The LTC6433-15 is uniquely different from other gain block amplifiers that are typically built using GaAs or pHEMT processes. These FET technologies have high 1/f noise corners on the order of 20MHz to 30MHz, so are prone to high noise floor rise, which renders them unusable at low frequencies. In contrast, the LTC6433-15 amplifier core is built using high frequency SiGe bipolar technology. As a result, the amplifier exhibits much lower 1/f noise corner, typically below 10kHz, making it usable at low frequencies to 100kHz without significant noise rise. Moreover, the performance of GaAs and pHEMT type devices is highly dependent on their internal FET bias voltage, which can vary widely from part to part. Not so with the LTC6433-15, whose performance is stable over temperature and from device to device, and is insensitive to power supply voltage variations.

The LTC6433-15's low frequency capability broadens its use and improves performance in a wide range of amplifier applications, including cable networks, broadband signal sources, radar receiver IF amplifiers, VHF/UHF broadcast radios and RF test instrumentation. The LTC6433-15 offers a superior alternative to many op amp solutions in amplifier applications that do not require DC coupling.

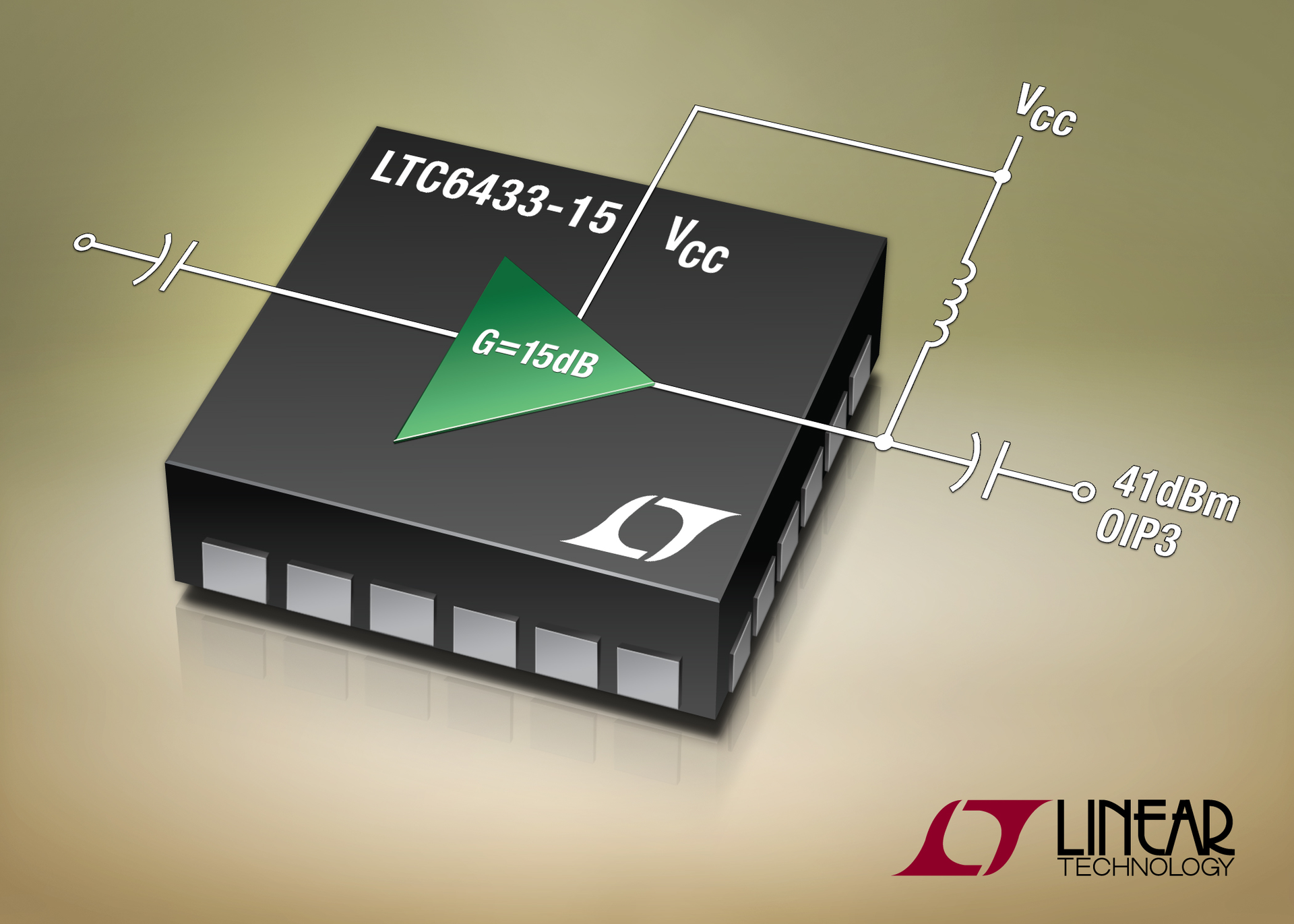

The LTC6433-15 input and output are 50W wideband matched from 100kHz to 1GHz with 1dB flatness over that frequency range. It has a -3dB bandwidth of 1.4GHz. The amplifier needs only an input and output DC blocking capacitor, plus a choke to bias its open collector output, and one feedback capacitor to set the matching and gain flatness at low frequencies. Hence, the LTC6433-15 simplifies wideband design and allows easy cascading with minimal external components. The DC2168A evaluation circuit demonstrates this performance, covering the 100kHz to 1GHz band with flat gain, low noise and industry leading distortion performance.
